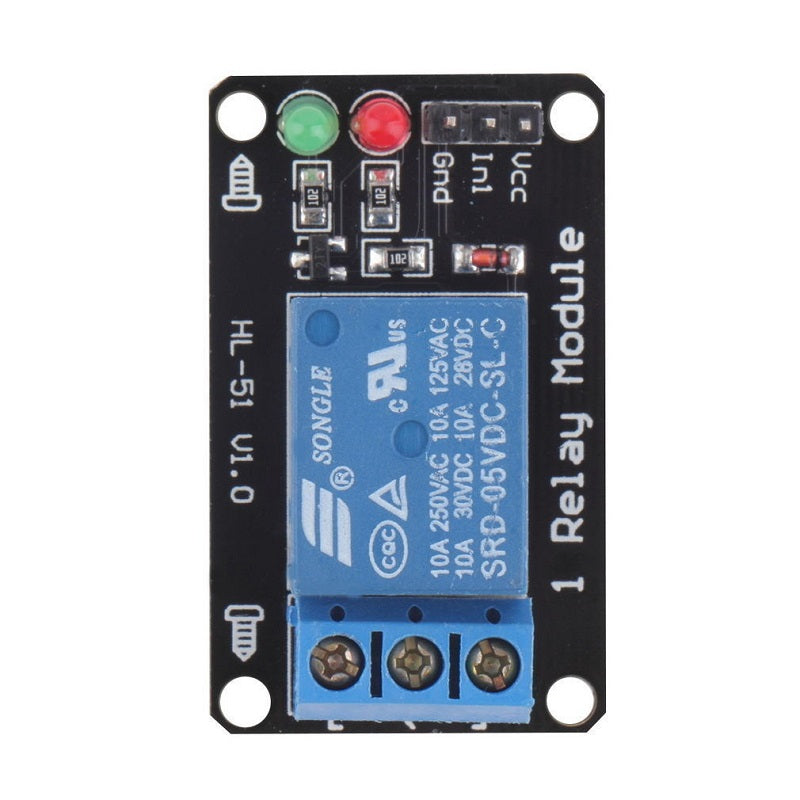

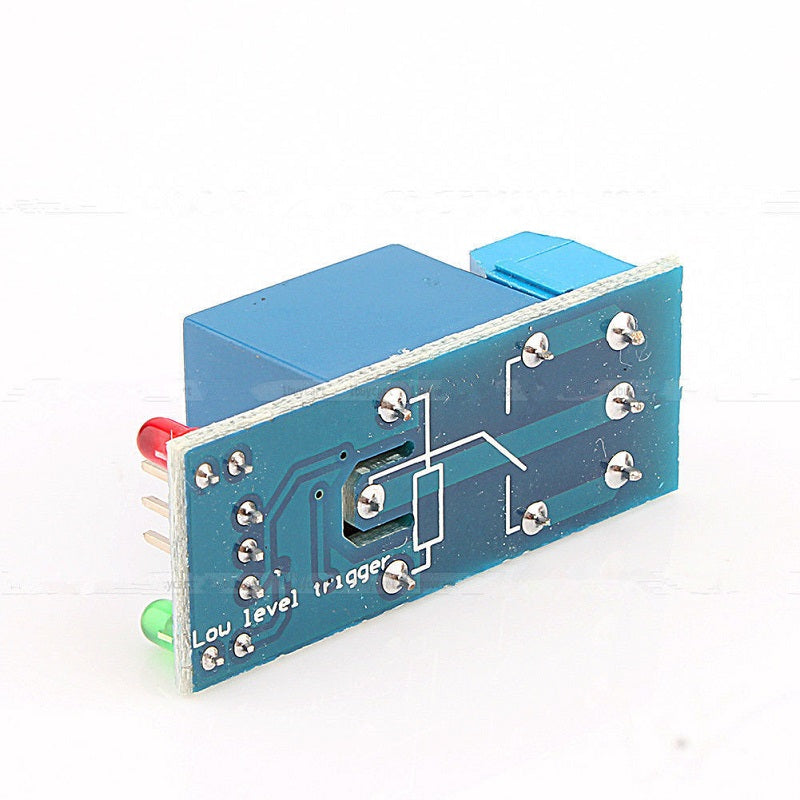

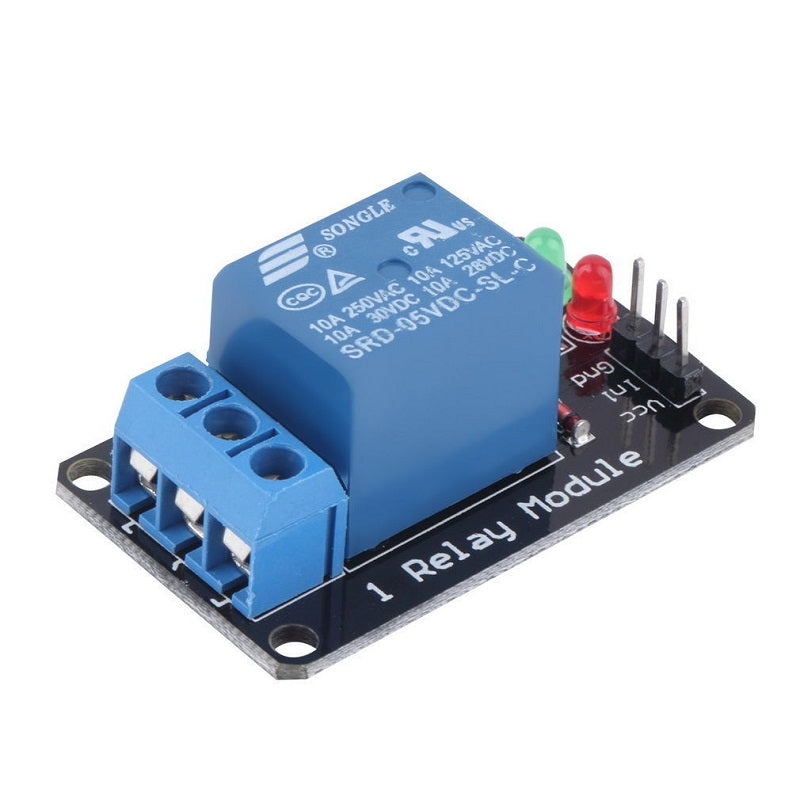

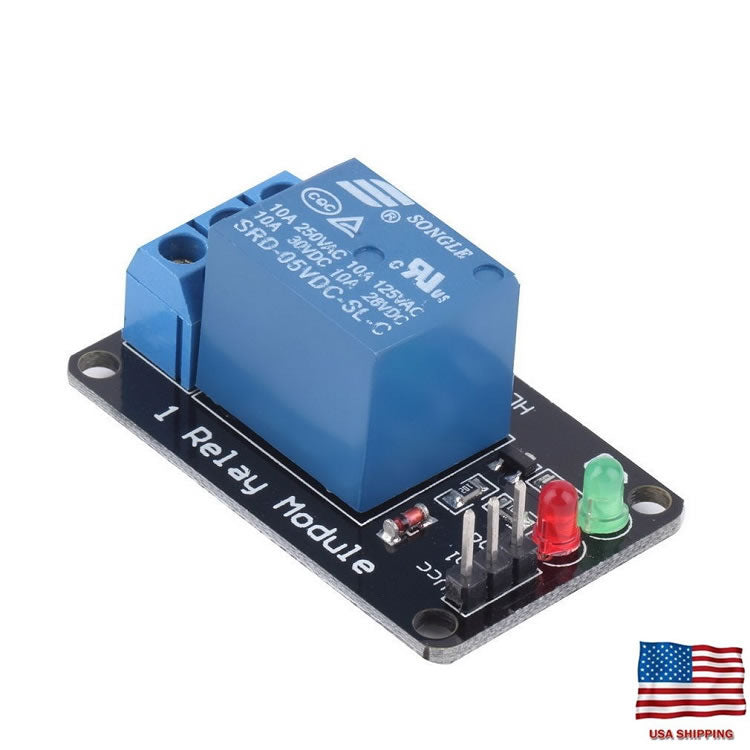

1 Channel DC 5V Relay Switch Module for Arduino Raspberry Pi ARM AVR

Features:

• 100% Brand New
• Size: 53mm x 28.3mm x 19.3mm
• Working voltage: 5V
• Channel: 1 channels
• 1-channel relay interface board which can be controlled directly by a wide range of microcontrollers
• Controllers includes Arduino, AVR, PIC, ARM, PLC, etc.
• It can control various appliances and other equipments with large current
• Relay output maximum contact is AC110V ~ AC250V 10A and DC30V 10A
• Standard interface can be directly connected with microcontrollers
• Red working status indicator for power on indication
• Green working status indicator for relay the switch
• Widely used for all MCU control, industrial sector, PLC control, smart home control

Package Includes:

• 1 x 4x4 Matrix Array 16 Key Membrane Switch Keypad Keyboard Arduino AVR Raspberry Pi
