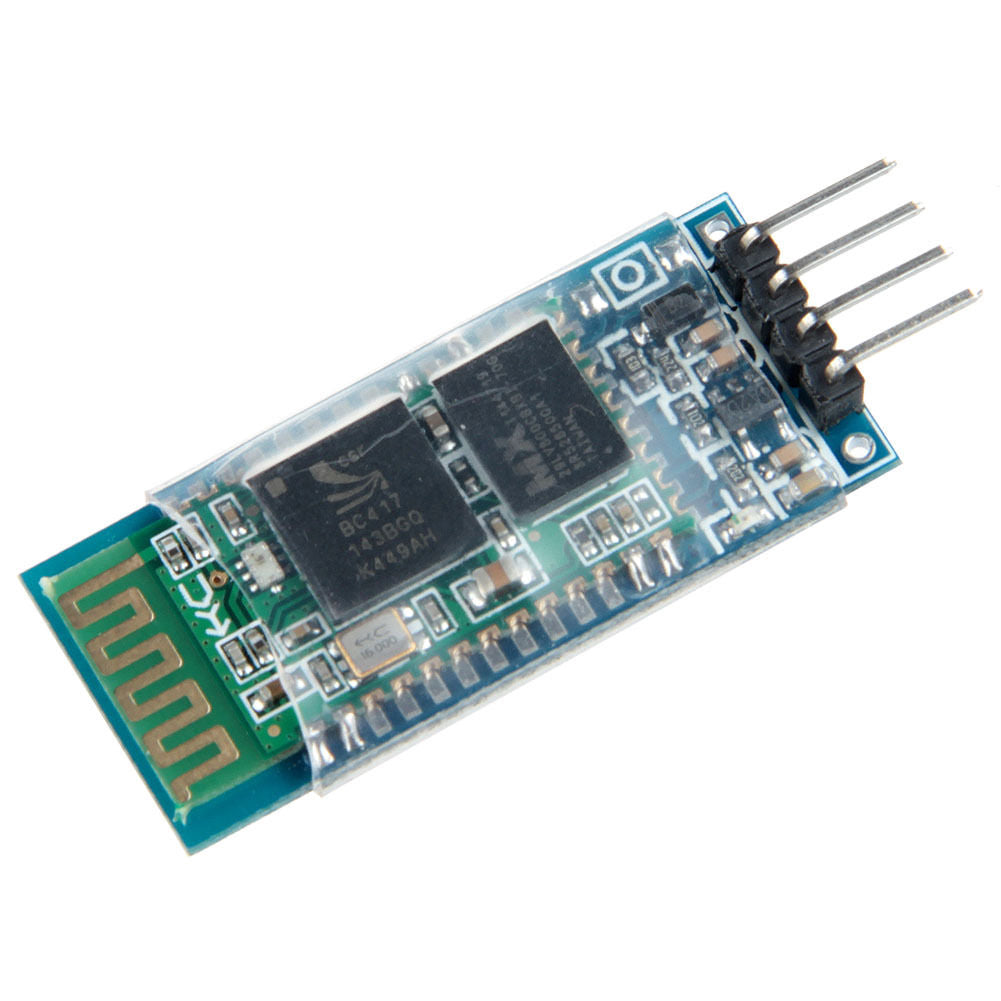

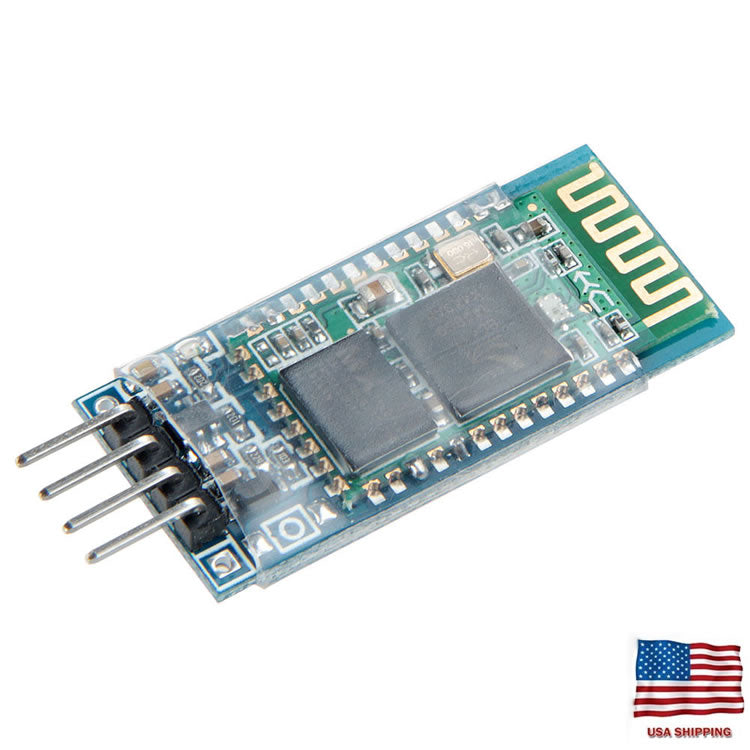

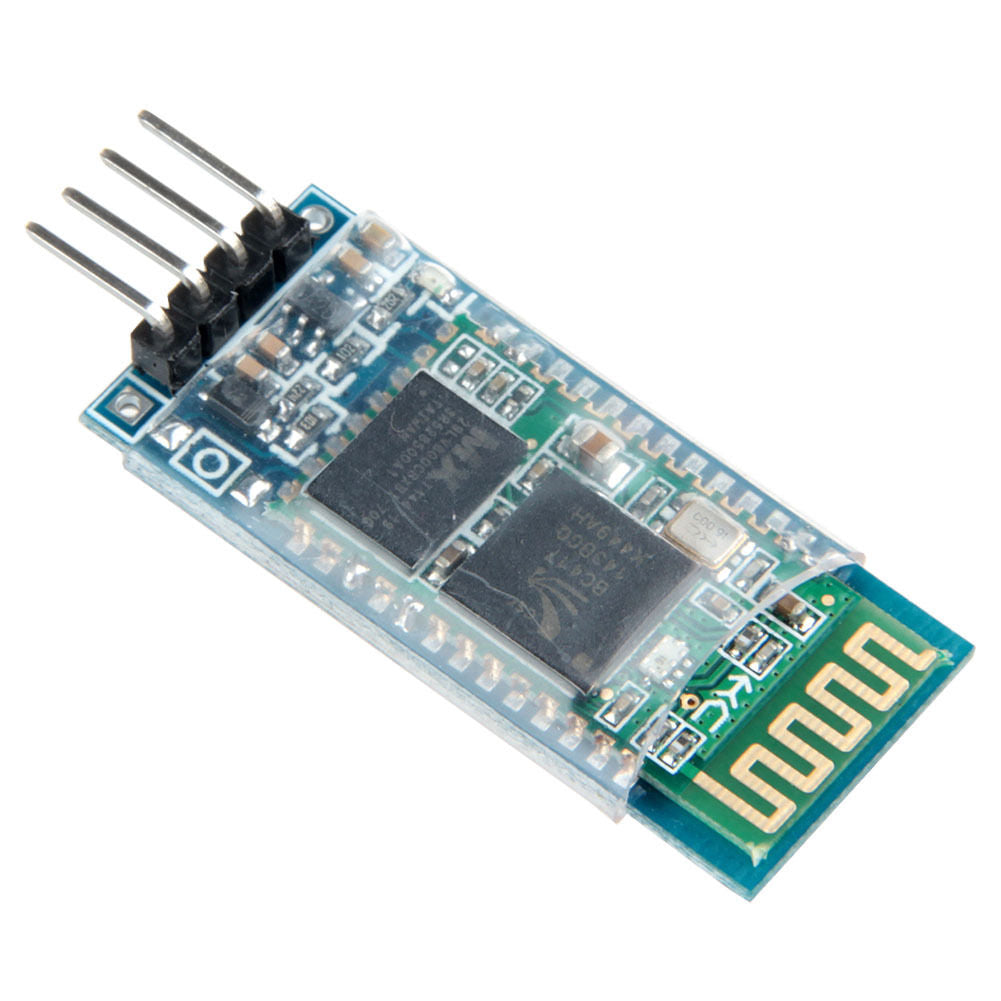

30ft Wireless Bluetooth RF Transceiver Module serial RS232 TTL HC-06 for arduino

Features:

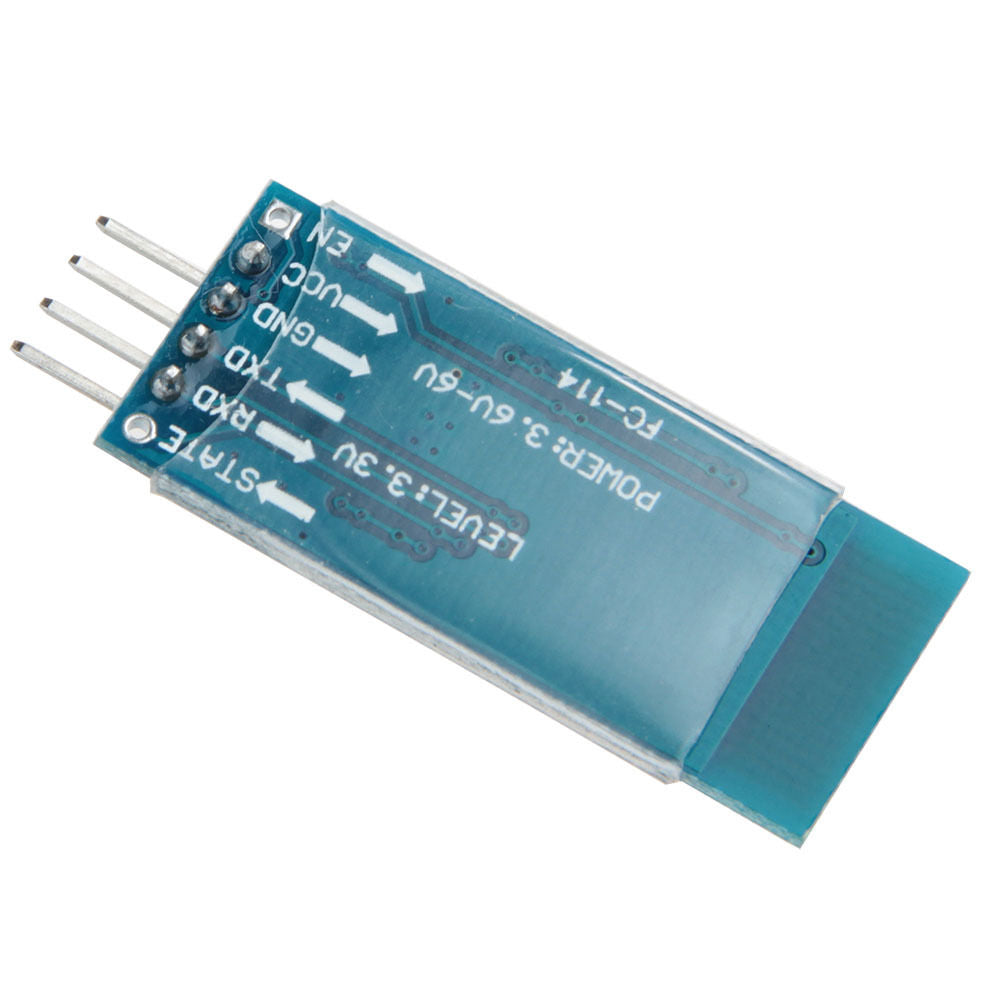

• The core module HC-06 main modules, leads the interface includes VCC, GND, TXD, RXD, KEY pin high trigger to clear the pairing information research.
• Led indicator which shows the status of Bluetooth connection.
• In open field, the effective distance is up to 30ft .
• With interface level of 3.3V, it can be directly connected to various SCM (51, AVR, PIC, ARM, MSP430, etc.), the 5V MCU also can be connected directly, without MAX232 or no need to go through the MAX232.
• Support to establish a Bluetooth connection through AT commands set the baud rate, passkey, set parameters are saved after.
• Bluetooth connection is automatically switched to the pass-through mode.
• Wireless serial Bluetooth port with free extension cable.

Package Includes:

• 1 x 30ft Wireless Bluetooth RF Transceiver Module serial RS232 TTL HC-06 for arduino
