PiMill

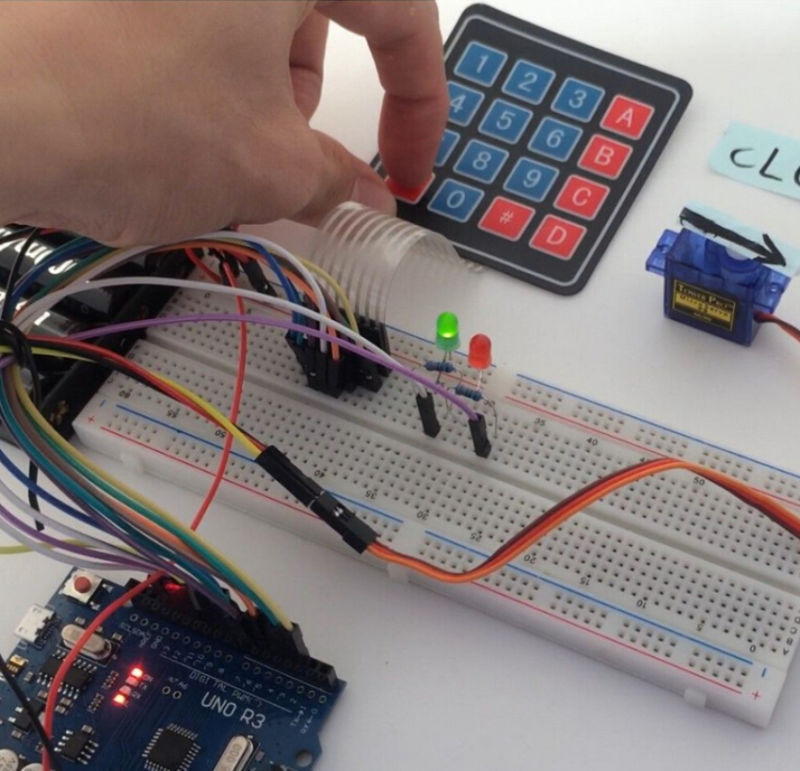

4x4 Matrix Array 16 Key Membrane Switch Keypad Keyboard Arduino AVR Raspberry Pi

4x4 Matrix Array 16 Key Membrane Switch Keypad Keyboard Arduino AVR Raspberry Pi

Regular price $7.99 USD
Regular price Sale price $7.99 USD
Sale Sold out
Shipping calculated at checkout.

Features:

  • Contact resistance of 500 (ohm)
  • Insulation resistance 100M (ohm)
  • Key Operating Force 150-200N
  • Rebound time 1 (ms)
  • Life of 100 million (times)
  • Operating Temperature 60 (C)
  • 1, the electronic characteristics
  • Circuit Rating: 35V (DC), 100mA, 1W
  • Contact resistance: 10 ohm ~ 500 ohm
  • (Varies according to the lead lengths and different from those of the material used)
  • Insulation resistance: 100Mohm 100V
  • Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
  • Electric shock jitter: <5ms
  • Life span: tactile type: >= one million times
  • 2, the mechanical properties
  • Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
  • Switch travel: touch-type: 0.6 ~ 1.5mm
  • 3, the environment parameters
  • Operating temperature: -40 to +80
  • Storage temperature: -40 to +80
  • Temperature: from 40,90% to 95%, 240 hours
  • Vibration: 20G, max. (10 ~~ 200Hz, the Mil-SLD-202 M204.Condition B)

Package Includes:

  • 1 x 4x4 Matrix Array 16 Key Membrane Switch Keypad Keyboard Arduino AVR Raspberry Pi
