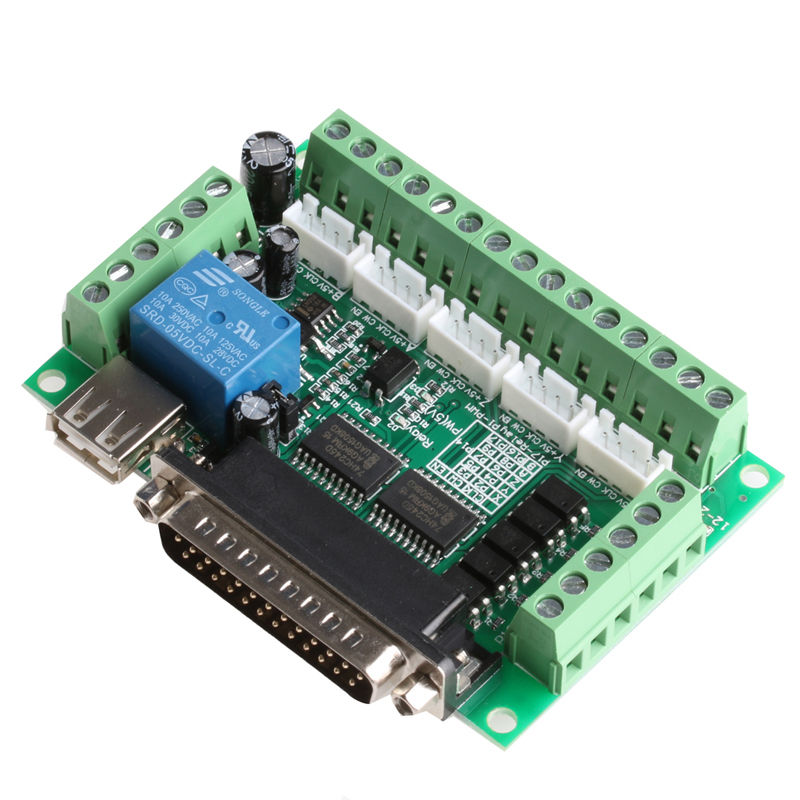

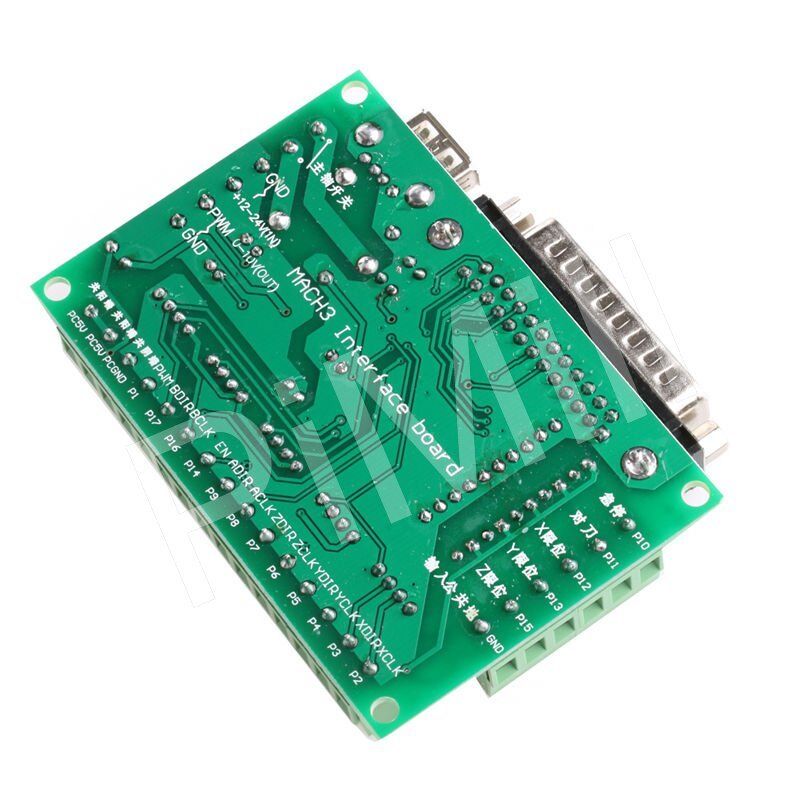

5 Axis CNC Interface Adapter Breakout Board For Stepper Motor Driver Mach3 w/USB

Features:

• Fully support of MACH3 and other computer software support for parallel port control.
• USB power supply and peripherals powered phase separation to protect computer security.
• Peripheral wide voltage input,12-24V, and anti-reverse function.
• All of the input signal, all the light lotus isolated, which can be accessed emergency stop on the knife, the limit to protect computer security.
• All the way to the relay output port, control spindle switch. Output port P17 mouth.
• All the way through the optocoupler isolated 0-10V analog voltage output can be controlled with the corresponding analog interface converter to control the spindle speed. Output port P1 port.
• Open all 17 ports, which can be accessed with the optocoupler drive, 5-axis stepper motor can be controlled.
• P1 as PWM outputs can be controlled with optocoupler input spindle governor.
• Can be accessed by a common cathode or common anode input level to 5V drive.

Package Includes:

• 1 x 5 Axis CNC Interface Adapter Breakout Board For Stepper Motor Driver Mach3
• 1 x USB Cable
