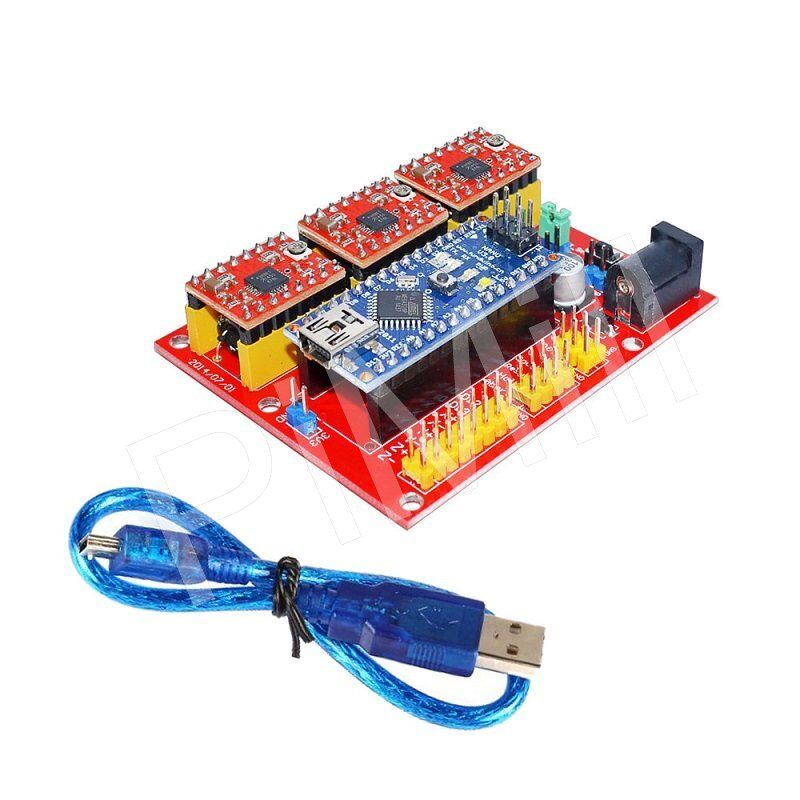

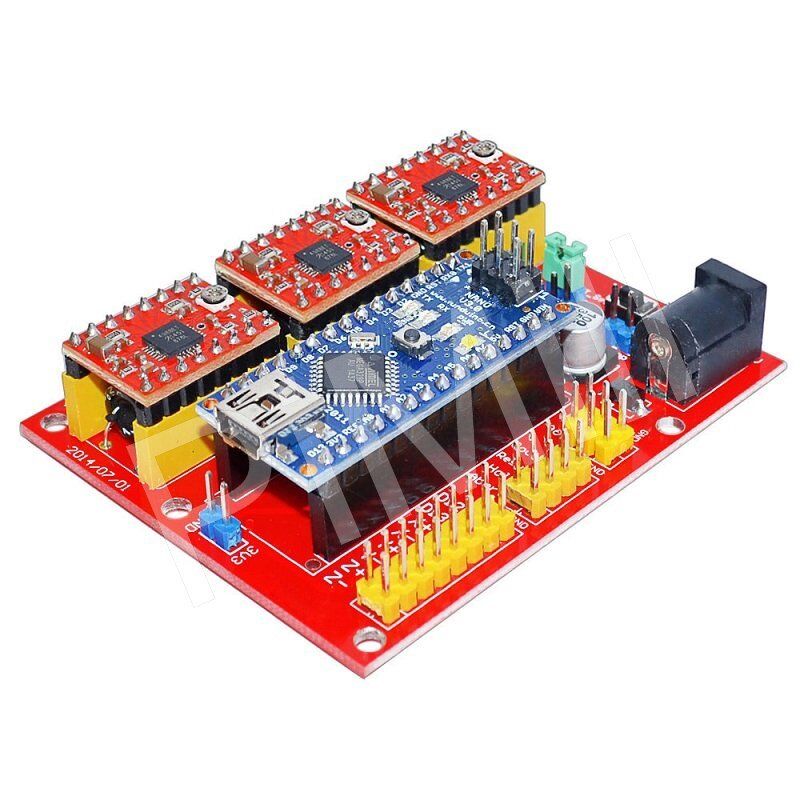

CNC Engraving machine Shield V4 A4988 Drive Board + USB Nano V3.0 for Arduino

CNC Engraving machine Shield V4 A4988 Drive Board + USB Nano V3.0 for Arduino

Regular price $25.49 USD
Regular price Sale price $25.49 USD
Sale Sold out
Shipping calculated at checkout.

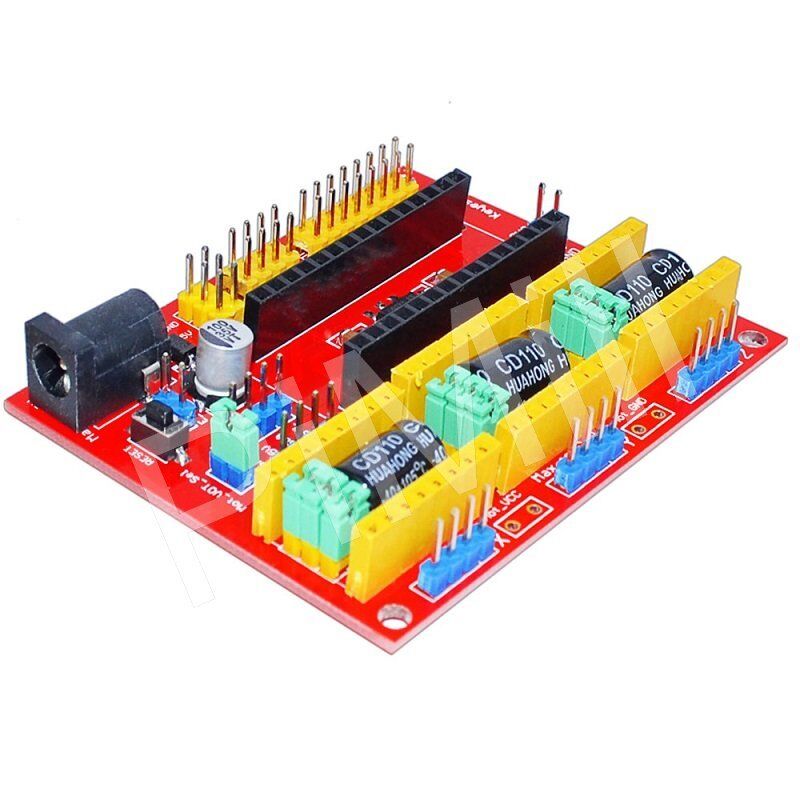

  • CNC Shield V4.0
    • 3 axis stepper motor driver
    • Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine,.
    • 2A can be controlled within the two-phase four-wire stepper motor.
    • Released the digital IO interface, easy to connect to other modules, such as ENDSTOP.
    • Released the I2C interface, you can connect to the LCD I2C or other I2C module.
    • Power DC5V interface, 7.5-12V voltage input.
    • GRBL compatible
    • Worked with nano
  • CH340 Nano board
    • CH340 Nano 3.0 controller is a small, complete board based on the ATmega328. It's a open source Simple I/O platform with 12 Digital I/O Pins (of which 6 provide PWM output), 8 Analog Input Pins, pin 0 (RX) and 1 (TX) used to receive (RX) and transmit (TX) TTL serial data, a Mini-B USB connection, an ICSP header and a reset button.
  • A4988 stepper driver
    • This product is a carrier board or breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection by Pololu; we therefore recommend careful reading of the A4988 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2 A output current per coil.

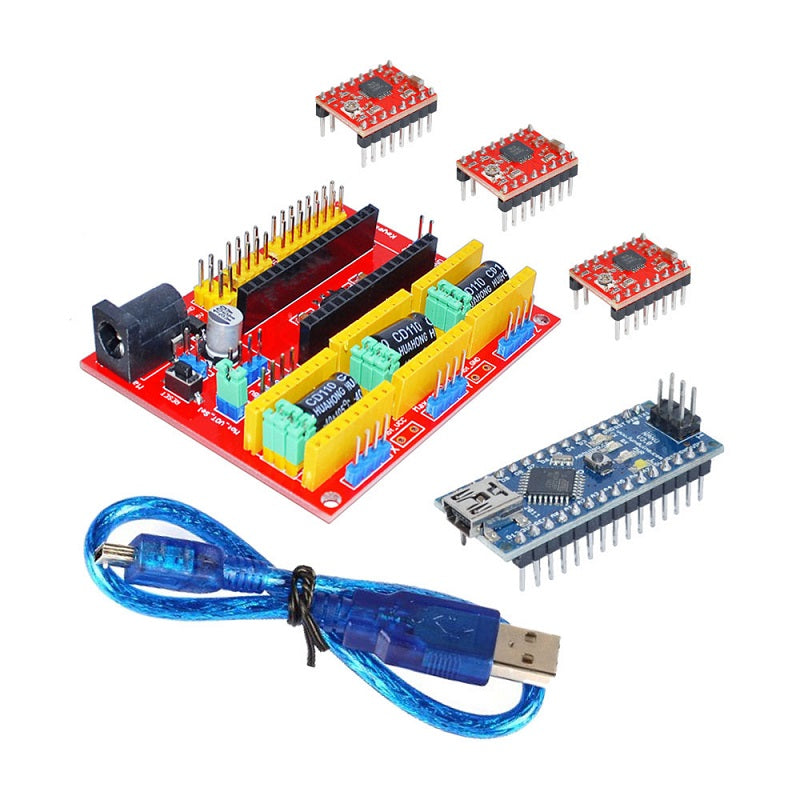

Package Includes:

  • 1 x CNC Shield V4.0
  • 1 x Nano board
  • 3 x A4988 driver
  • 1 x USB cable
