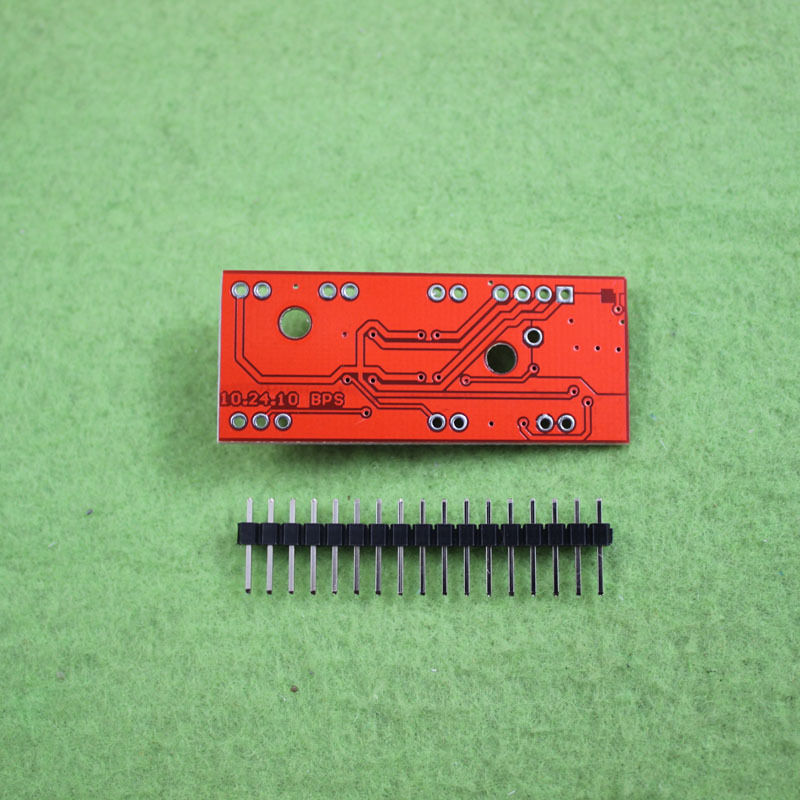

EasyDriver Shield stepping Stepper Motor Driver V44 A3967 For Arduino

Features:

• The EasyDriver is a simple to use stepper motor driver,
• compatible with anything that can output a digital 0 to 5V pulse
• (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver).
• EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor.
• The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V.
• Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control!
• EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors.
• On this version (v4.4) we fixed the silk error on the min/max adjustment.
• MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)
• Compatible with 4, 6, and 8 wire stepper motors of any voltage
• Adjustable current control from 150mA/phase to 750mA/phase
• Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds
• This is the newest version of EasyDriver V4 co-designed withBrian Schmalz.
• It provides much more flexibility and control over your stepper motor, when compared to older versions.
• The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the microstepping resolution.
• The sleep and enable pins are also broken out for further control.
• Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.

Package Includes:

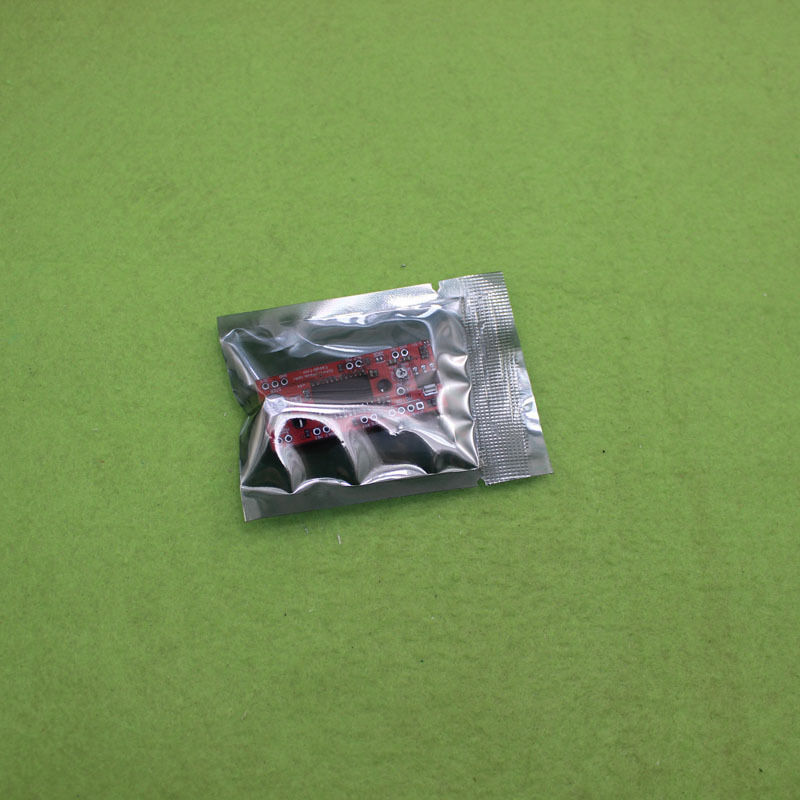

• 1 x EasyDriver Shield stepping Stepper Motor Driver V44 A3967 For Arduino
