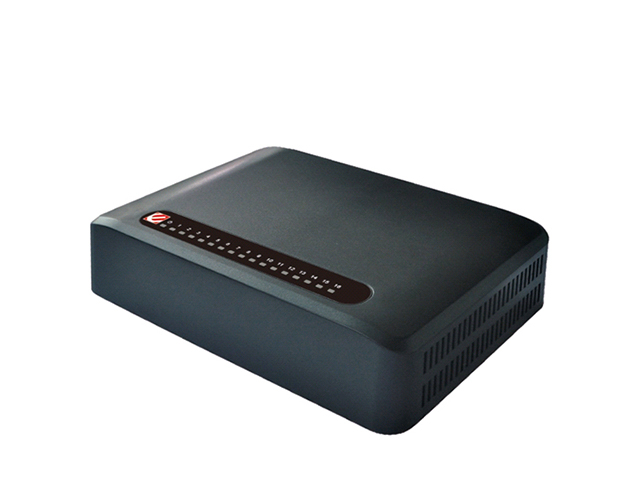

Encore (ENH916-NWY) 16 Ports Nway Switching Hub

Overview

The ENCORE ENH916-NWY 16-Port 10/100 Fast Ethernet Switch is a powerful, high-performance Fast Ethernet switch, with all 16ports

capable of 10 or 100Mbps auto-negotiation operation (NWay), whichmeans the switch could automatically negotiate with the connected

partners onthe network speed and duplex mode. It is ideal for micro-segmenting largenetworks into smaller, connected subnets for

improved performance, enablingthe bandwidth demanding multimedia and imaging applications. Moreover, the10/100Mbps auto-sensing

ability provides an easy way to migrate 10Mbps to100Mbps networks with no pain. Compared to the shared 10Mbps or 100Mbpsnetworks,

the switch delivers a dedicated 10/100Mbps connection to everyattached client with no bandwidth congestion issue.



Store-and-forward switching mode promises the low latency plus eliminates allthe network errors, including runt and CRC error packets.

To work underfull-duplex mode, transmission and reception of the frames can occursimultaneously without causing collisions as well as

double the networkbandwidth.



The switch is plug-n-play without any software to configure and also fullycompliant with all kinds of network protocols. Moreover,

the rich diagnostic LEDson the front-panel provide the operating status of individual port and wholesystem.

FEATURE

Provide 16 10/100Mbps Fast Ethernet ports

Allow each port to run at its optimal speed while reducing network congestion

Feature plug-n-play operation that doesn’t require any software configuration

Provide front-panel diagnostic LEDs to monitor the operating status of the ports and the whole system

Provide compliance to many networking protocols

Low power consumption

​Standard:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX

IEEE 802.3x full duplex operation and flow control

Interface:

16 10/100 Mbps RJ-45 NWay switching ports

Cable Connections:

RJ-45 (10BASE-T):Category 3,4,5 UTP/STP

RJ-45 (100BASE-TX):Category 5 or above UTP/STP

Network Data Rate:

10/100 Mbps Auto-negotiation

Transmission Mode:

Auto-negotiation(Full-duplex, Half-duplex)

LED Indications:

System: Power

Ports: Link/Activity



MAC Address Table:

8K MAC address entries

Buffer Memory:

256K bytes

Filtering/Forwarding Rate    10Mbps: 14,880pps/14,880pps

                                           100Mbps: 148,800pps/148,800pps

Operating Temperature:

Operating Temperature: 0~40°C(32°~104°F)

Storage Temperature: -40 ~ 70°C(-40°~158°F)

Operating Humidity:

Operating: 10%~90%, non-condensing

Storage: 5% ~ 90%, non-condensing

Power Supply:

Internal power supply 5V/1A

Emission:

CE, FCC, Class A
