Extreme Networks Summit (16148) 48-Ports External Switch Managed stackable

Refurbished!

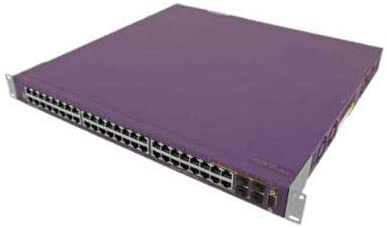

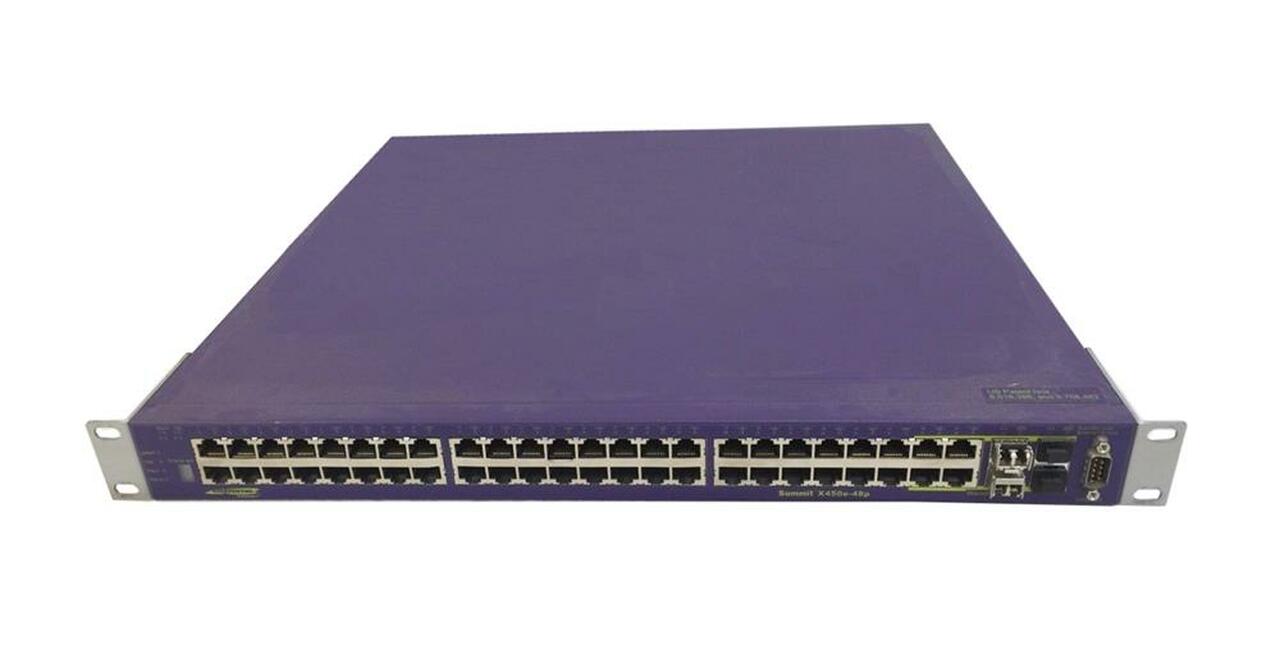

Extreme Summit X450e Switch - 48 x 10/100/1000BASE-T ports with PoE - 4 ports SFP shared with 4 x 10/100/1000BASE-T ports - dual 10G option slot for XGM2 (Extreme X450e-48p Part # 16148)

General Specifications

Performance

256 Gbps switch fabric bandwidth
130.9 Mpps frame forwarding rate
9,216 Byte maximum packet size (Jumbo Frame)
128 load sharing trunks, up to 8 members per trunk
8 QoS queues/port
4,094 VLANs (Port, Protocol, IEEE 802.1Q)
1,024 centralized ACL rules per 24-ports
Forwarding Tables

Layer 2/MAC Addresses: 8K
IPv4 LPM Entries: 512
IPv6 LPM Entries: 256
Rate Limiting

Ingress bandwidth policing/rate limiting per flow
Egress bandwidth rate shaping per egress queue and per port
Rate Limiting Granularity: 64Kbps
Available Rate Limiters: 1,024 per 24-ports
Indicators

Per port status LED including power status
System Status LEDs: management, fan and power
Ports

48 ports 10/100/1000BASE-T PoE with auto-speed and auto-polarity (Summit X450e-48p/
Summit X450e-48p-TAA)

4 ports SFP (shared PHY with 4 10/100/1000BASE-T ports)
1 port Serial (control port)
1 10/100BASE-T out-of-band management port
Option Slot

Slot for XGM2 dual 10 gigabit option module
External Power Supply Support

EPS-C with EPS-600LS (Summit X450e-48p)
EPS-500 (Summit X450e-48t)
Physical Specifications

Dimensions

Height: 1.73 Inches/4.4 Cm
Width: 17.35 Inches/44.1 Cm
Depth: 17.0 Inches/43.2 Cm
Weight: 16.25 lbs/7.4 Kg (Summit X450e-48p/Summit X450e-48p-TAA)
Operating Specifications

Temperature

Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
Operating Humidity: 10% to 93% relative humidity, non-condensing
Operational Shock (Half Sine): 30 m/s2 (3g), 11ms, 60 Shocks
Operational Random Vibration: 3-500 MHz @ 1.5g rms
Storage & Transportation Conditions (Packaged)

Transportation Temperature: -40° C to 70° C (- 40° F to 158° F)
Storage and Transportation Humidity: 10% to 95% RH, non-condensing
Packaged Shock (Half Sine): 180 m/s2 (18g), 6ms, 600 shocks
Packaged Sine Vibration: 5 – 62 Hz @ Velocity 5mm/s, 62 – 500 Hz @ 0.2 G
Packaged Random Vibration: 5 – 20 Hz @ 1.0 ASD w/-3dB/oct. from 20 – 200 Hz
14 drops min on sides & corners @ 42” (<15kg box)
Power & Acoustic Sound

All Summit X450e 48-port Models

Voltage Input Range: 90 – 264V
Nominal Input Ratings: 100~240V, 50/60 Hz, 6.0A
Maximum In-Rush Current: 30A @115V/60A@ 230V
Efficiency: 80% with 60% – 100% load
Line Frequency Range: 47 – 63 Hz
Nominal Frequency Range: 50 – 60 Hz
Power Supply Input Socket: IEC 320 C14
Power Cord Input Plug: IEC 320 C13
Sound Power in accordance with EN 300 753 (10-1997)
Sound Power: 62 dBA per ISO 7779
Declared Sound Power: 6.4 belsA per ISO 7779 & ISO 9296
Bystander Sound Pressure in accordance with NEBS GR-63 Issue 2
Bystander Sound Pressure: 54 dBA right side @ .6m
Summit X450e-48p/Summit X450e-48p-TAA

Nominal Input Current: 5.25A @ 100V~ (lowline) 2.5A @ 230V~ (highline)
Heat Dissipation (with PoE full load): 180W (614 BTU/hr)
Power Consumption (with PoE full load): 507W (1,730 BTU/hr)
Heat Dissipation (without PoE): 73W (250 BTU/hr)
Power Consumption (without PoE): 73W (250 BTU/hr)
