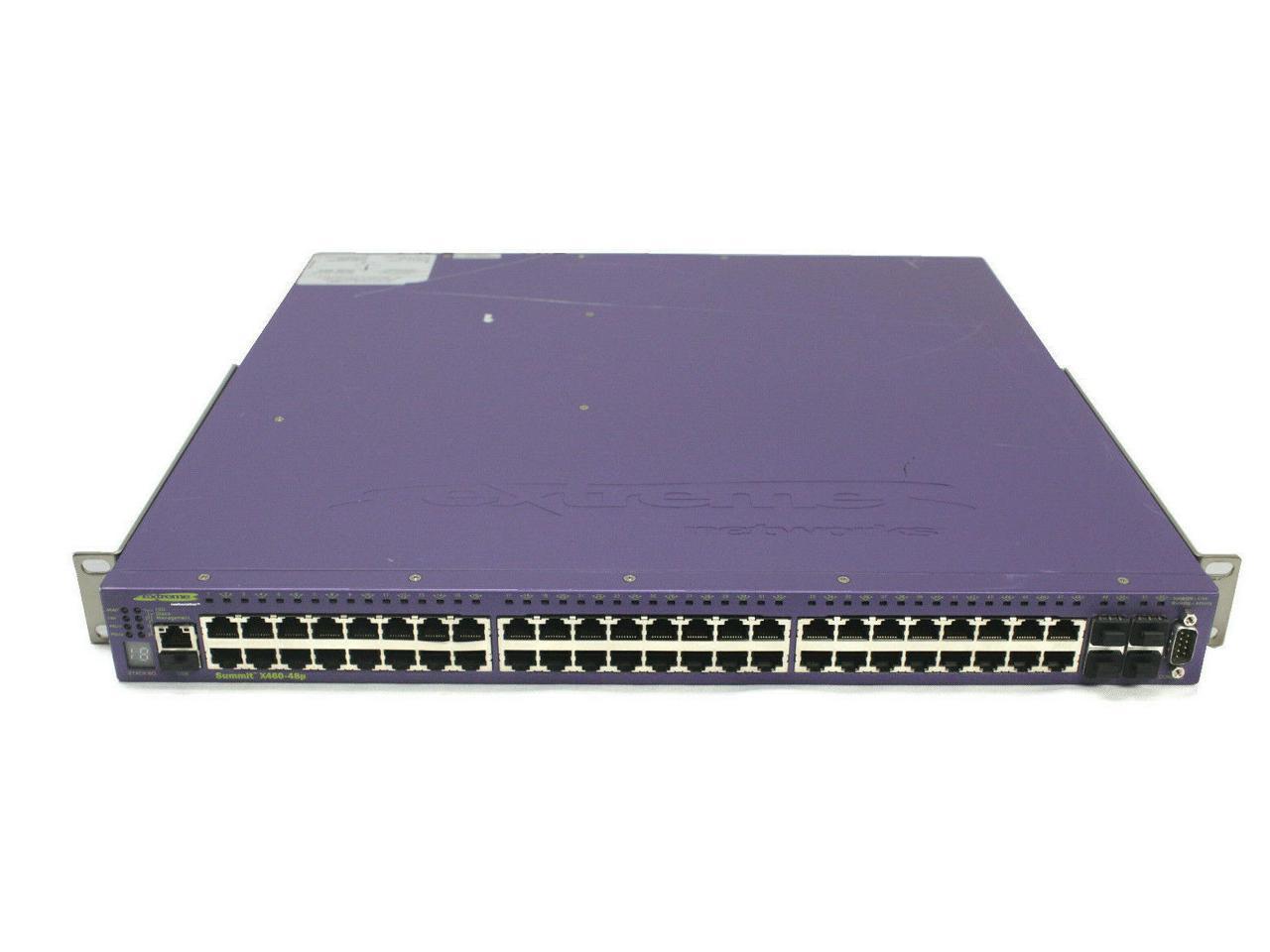

Extreme Networks Summit X460-48P 16404 (16404) 48-Ports-Ports Ethernet Switch

Extreme Networks Summit X460-48P 16404 (16404) 48-Ports-Ports Ethernet Switch

Regular price $99.99 USD
Regular price Sale price $99.99 USD
Sale Sold out
Shipping calculated at checkout.


Extreme Summit X460 Switch - 48 x 10/100/1000BASE-T with PoE - 4 x 100/1000BASE-X unpopulated SFP - slot for optional XGM3 module - slot for optional stacking module - AC PoE PSU with one unpopulated PSU slot - Fan module - ExtremeXOS Edge license (Summit X460-48p Part # 16404)

General Specifications


176 Gbps (24t/24p/24x), 224 Gbps (48t/p), 216 Gbps (48x) aggregated switch bandwidth
130.9 Mpps (24t/24p/24x), 166.7 Mpps (48t/48p) and 160.7 Mpps (48x) frame forwarding rate
Less than 4 microsecond latency (64-byte)
9216 Byte maximum packet size (Jumbo Frame)
128 load sharing trunks, up to 8 members per trunk
4,094 VLANs (Port, Protocol, IEEE 802.1Q)
4,192 ingress and 512 egress ACL rules, meters and counters/24-port
Forwarding Tables

Layer 2/MAC Addresses: 32K
IPv4 LPM Entries: 12K
IPv6 LPM Entries: 6K
CPU, Memory

64-bit MIPS Processor, 600 MHz clock
1GB Compact Flash
QoS, Rate Limiting

4,096 ingress bandwidth meters/24 ports
Ingress and egress bandwidth policing/rate limiting per flow/ACL
8 QoS egress queues/port
Egress bandwidth rate shaping per egress queue and per port
Rate Limiting Granularity: 8 Kbps
LED Indicators

Per port status LED including power status
System Status LEDs: management, fan and power
Option Slots

XGM3 slot (slot A)
Stacking module slot (slot B) External Ports for XGM3 Module (slot A)
2-port 10GBASE-X SFP+ (XGM3-2sf) External Ports for Stacking Module (slot B)
2-port 20G SummitStack module
2-port 40G SummitStack-V80 module Power Supply Support
Summit 300W AC PSU
Summit 300W DC PSU
Summit 750W AC PoE PSU Fan Speed
Minimum speed 2500 RPM
Maximum speed 15900 RPM
