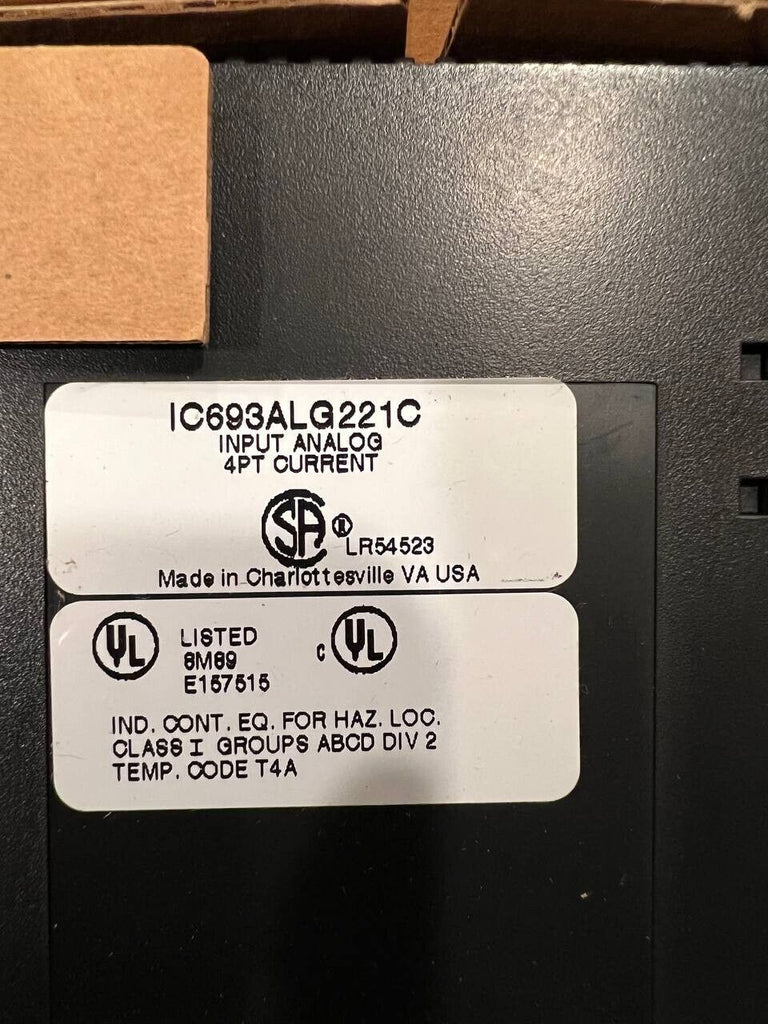

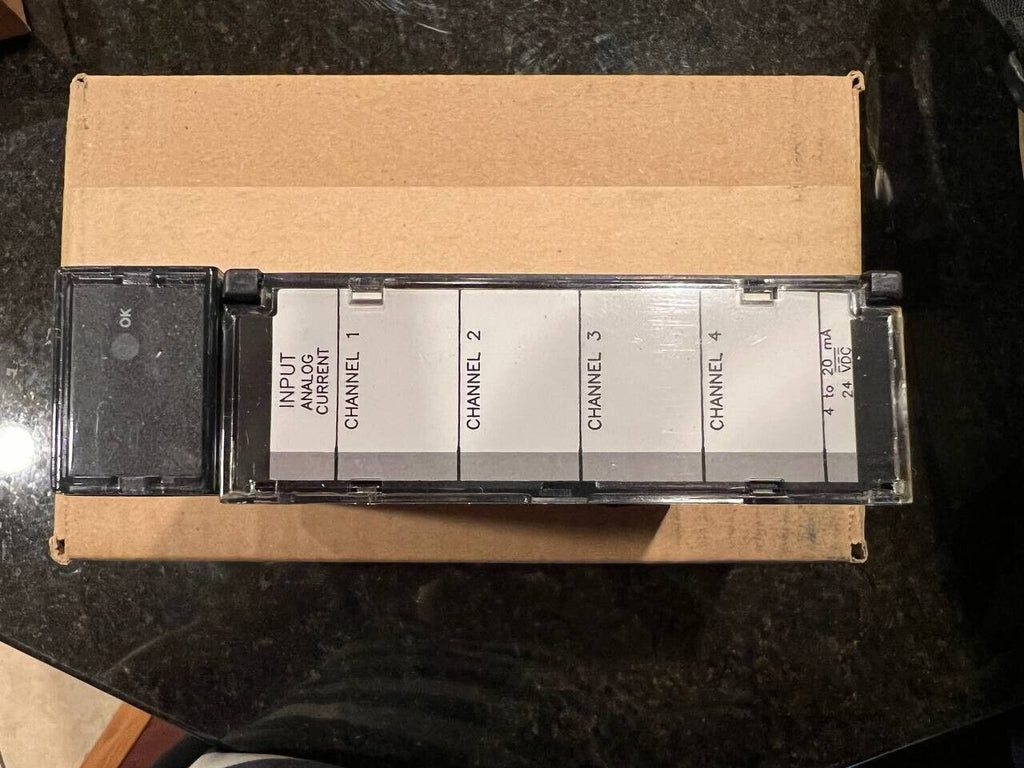

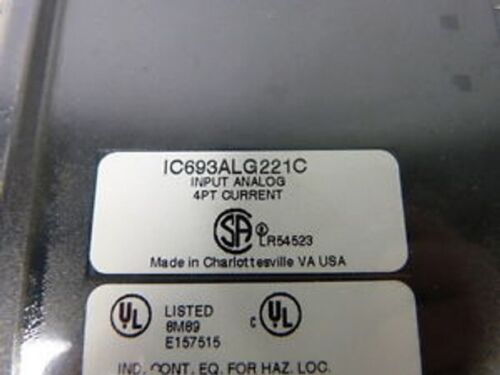

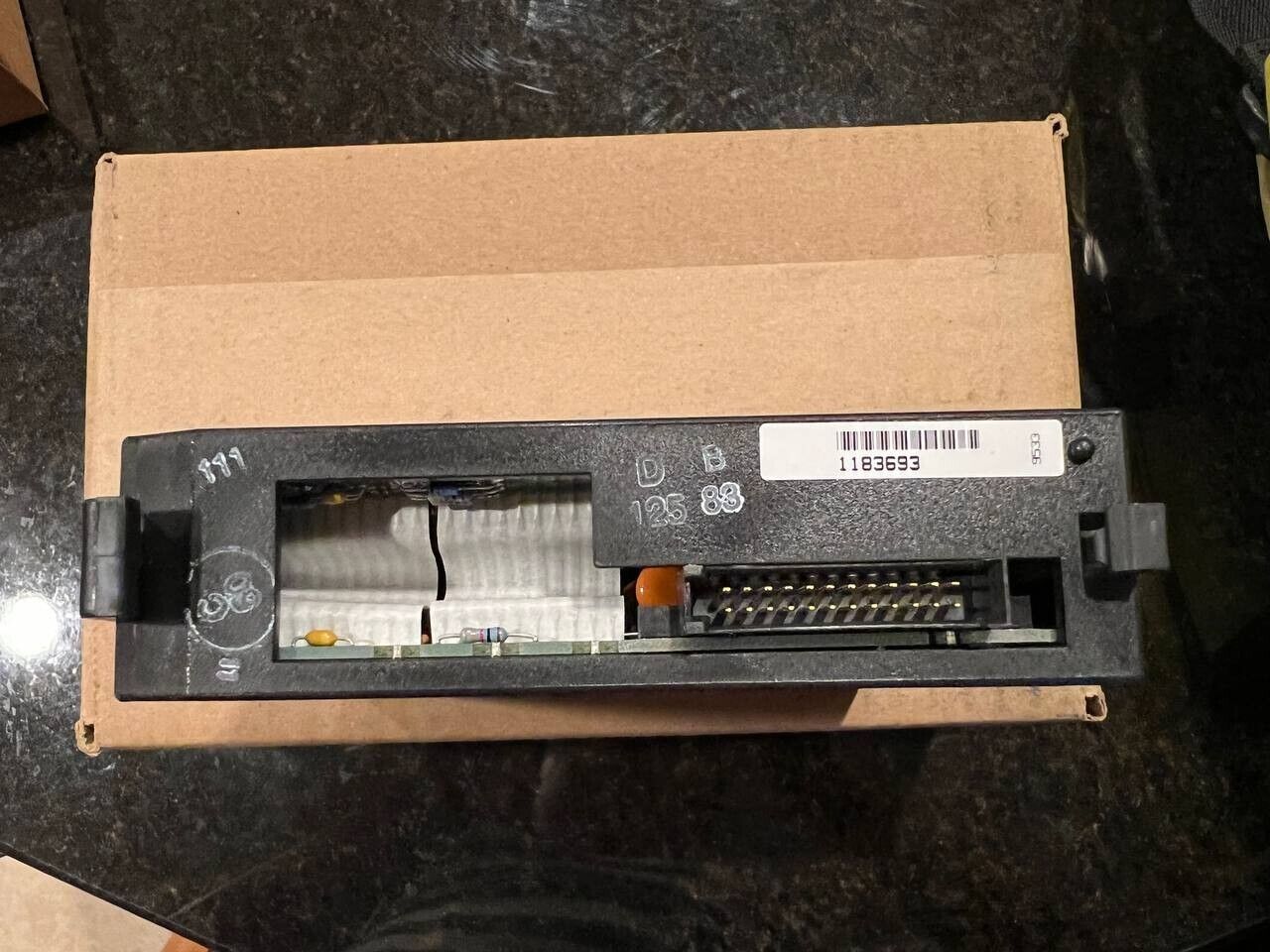

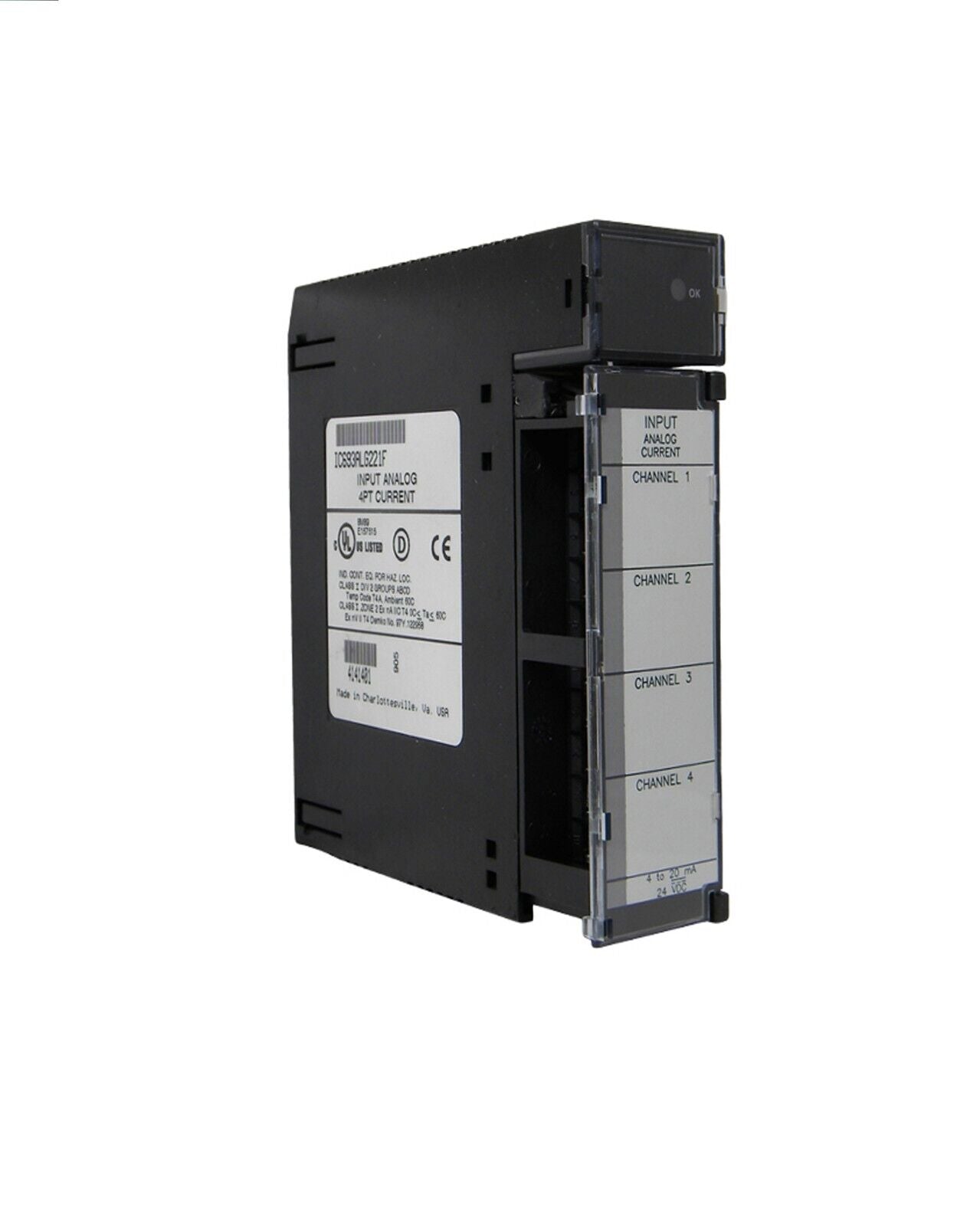

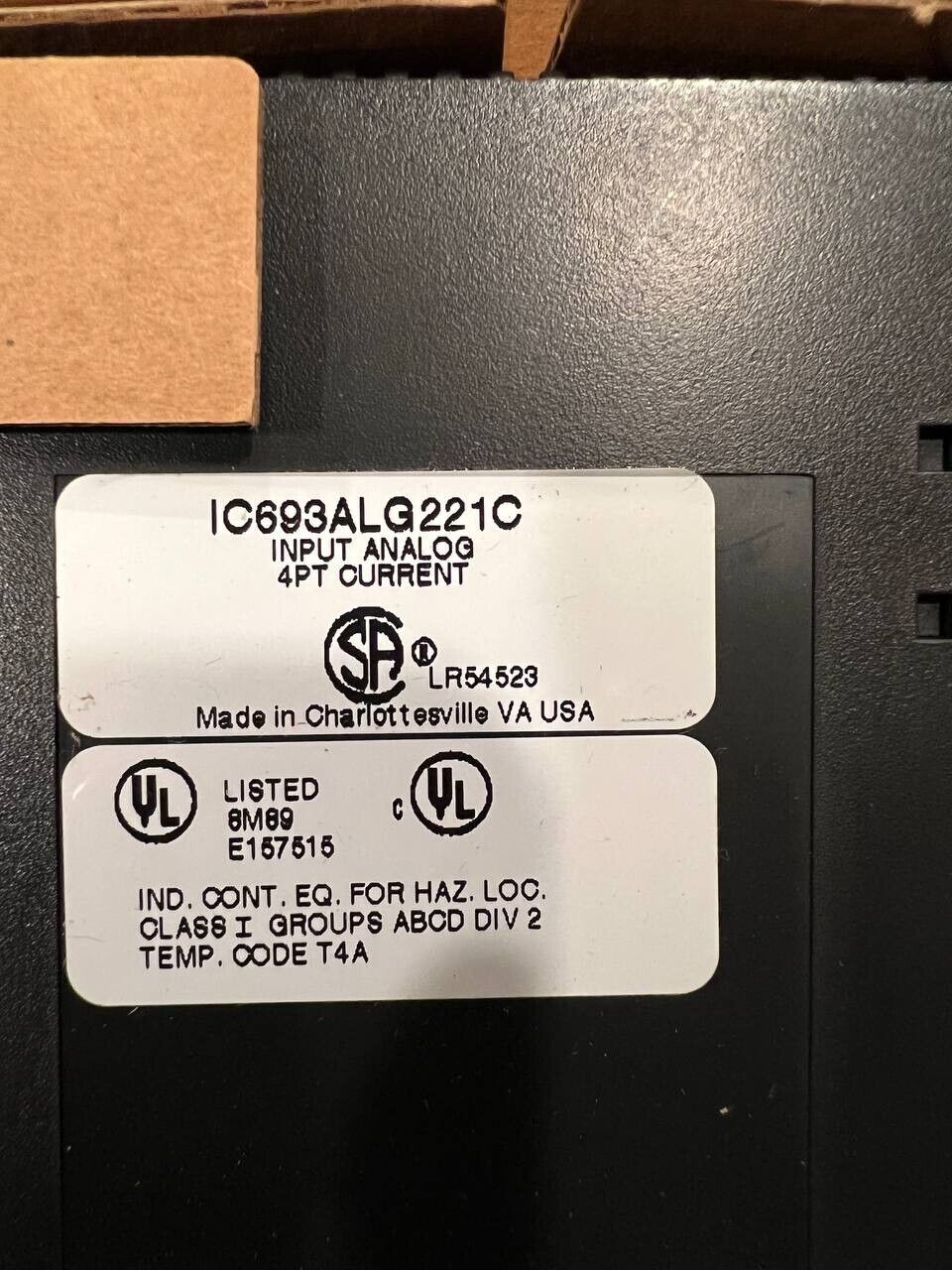

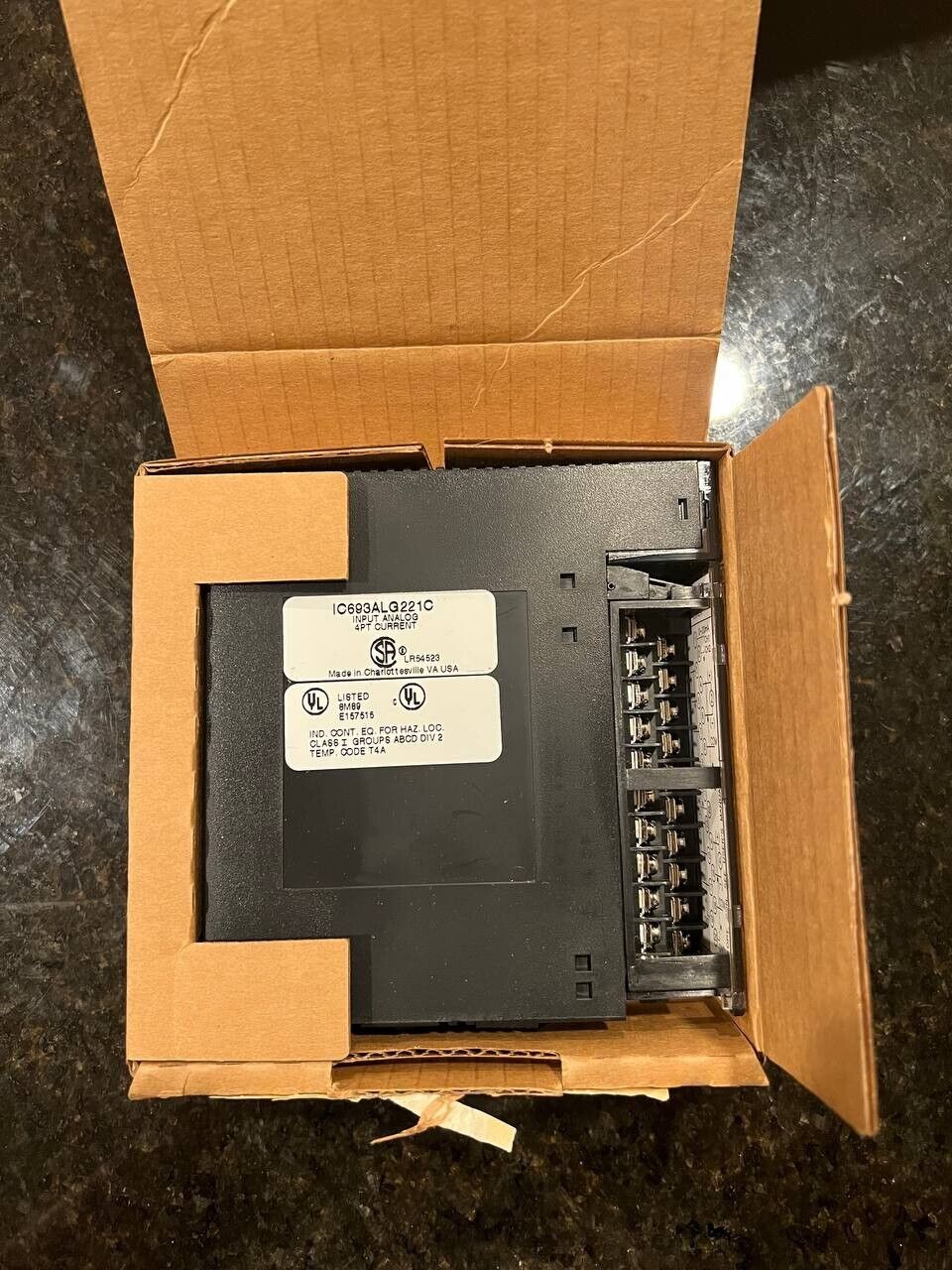

GE IC693ALG221C PLC Analog Input Modules 4PT CURRENT

GE IC693ALG221C PLC Analog Input Modules 4PT CURRENT

Regular price $599.99 USD
Regular price Sale price $599.99 USD
Sale Sold out
Shipping calculated at checkout.

IC693ALG221 is an Analog Current Input Module with four input channels for the Series 90-30 Programmable Logic Controller. This controller’s channels are each capable of converting an analog input signal into a digital signal as needed for the application. Two input ranges are available with a default of 4 to 20 mA with scaled user data so 4 mA corresponds to a count of zero and 20 mA to 32000. Each 1000 count represents 0.5 mA. If a jumper is added to the I/O terminal board, the input range is adjusted to 0 to 20 mA with scaled user data scale corresponding to a count of 32000 with each 800 count equal to 0.5 mA. This module is equipped with two range jumpers:  one for channels 1-2 and one for channels 3-4.

The IC693ALG221 input module allows conversion speed of one half milliseconds for each of the channels with an update rate of two milliseconds for any of the provided channels. Resolution speed on a converted signal is 12 bits over either chosen range. Percent AI user data registers in 16 bit 2’s complement format. If the current source is reversed into the input, the module will output a data word that parallels to the low end of the range.

Input protection for the IC693ALG221 is sufficient to work with reduced performance with up to 200 V in common mode settings. This module also allows electrical isolation of external noise. All field connections require a good grade twisted, shielded instrumentation cable connected to the COM or GND. An LED indicator monitors power supply operation. The main power source specific to the IC693ALG221 is +24 VDC supplied PLC power routed through an inverter for the module. IC693ALG221 uses power from the +5 VDC output to drive isolation circuitry.

Technical Specifications


No. of channels: 4 Inputs
Input Current  Range: 4 to 20 mA and 0 to 20 mA
Calibration: Factory calibrated to 4 µA per count
Update Rate: 2 msec (all 4 channels)
Input Filter Response: 325 Hz
Power Consumption: 25 mA from +5V bus and 100mA from +24V bus
