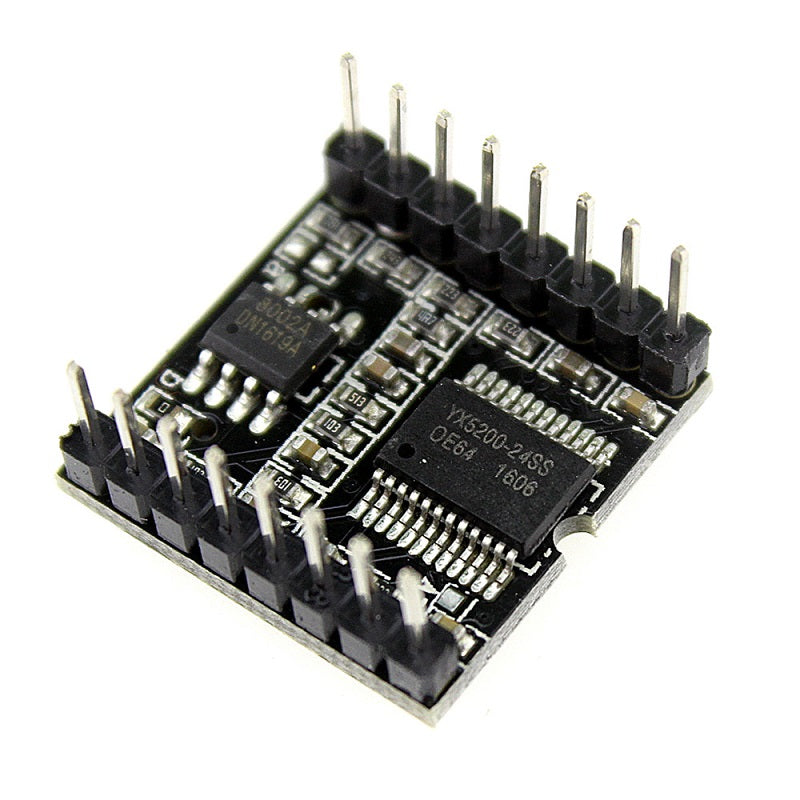

Mini MP3 Player Module U-disk TF SD with Simplified Output Speaker for Arduino

Mini MP3 Player Module U-disk TF SD with Simplified Output Speaker for Arduino

Regular price $7.99 USD
Regular price Sale price $7.99 USD
Sale Sold out
Shipping calculated at checkout.

Features:

  • This is a small and low cost MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other board with RX/TX capabilities.
  • It is perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV and WMA. Besides, it also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.
  • Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  • 24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
  • Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, Support 32G of U disk, 64M bytes NORFLASH
  • A variety of control modes, I/O control mode, serial mode, AD button control mode
  • Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
  • Audio data sorted by folder,
  • supports up to 100 folders, every folder can hold up to 255 songs
  • 30 level adjustable volume, 6 -level EQ adjustable
  • Applications: Vehicle electronic product, intelligent housing system, voice prompt of medical appliance, household appliances and so on.

Package Includes:

  • 1 x Mini MP3 Player Module U-disk TF SD with Simplified Output Speaker for Arduino
