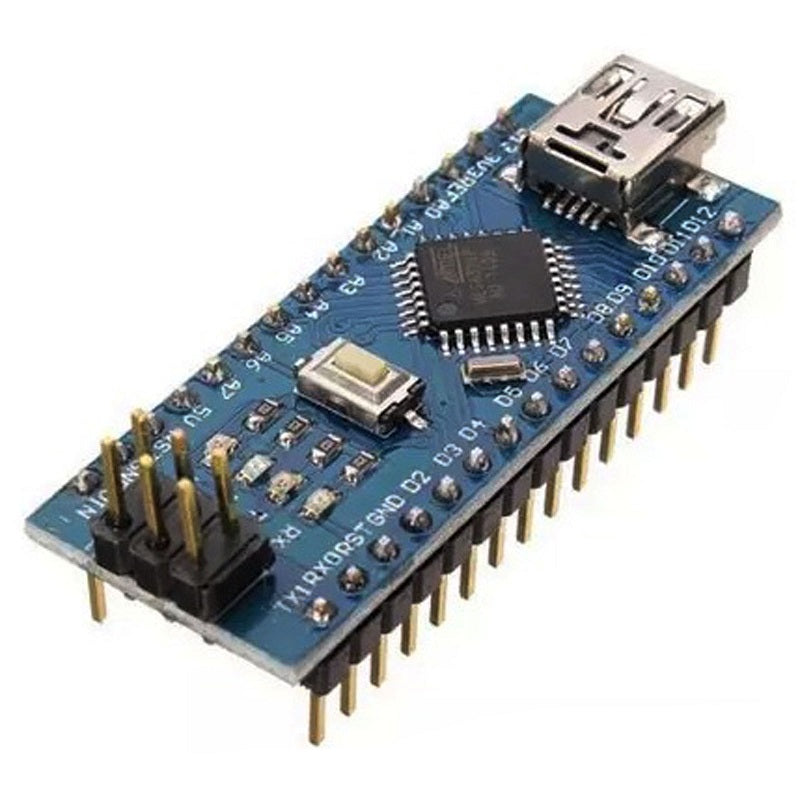

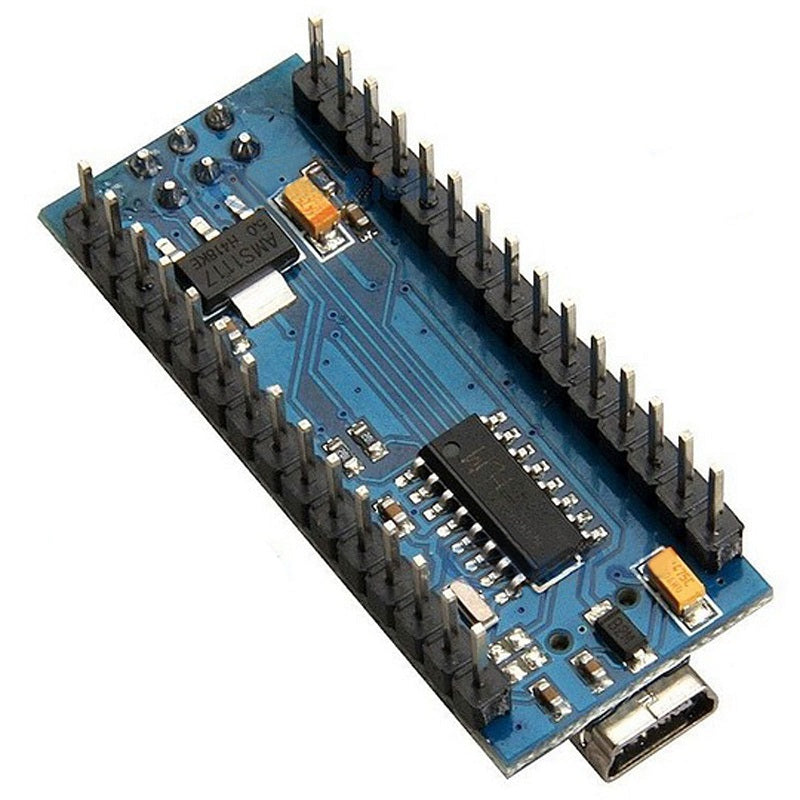

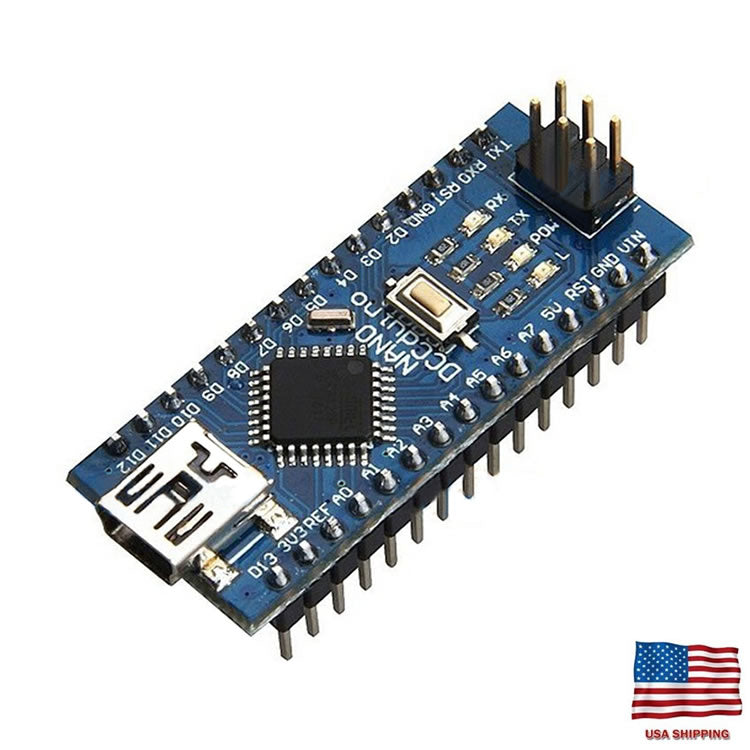

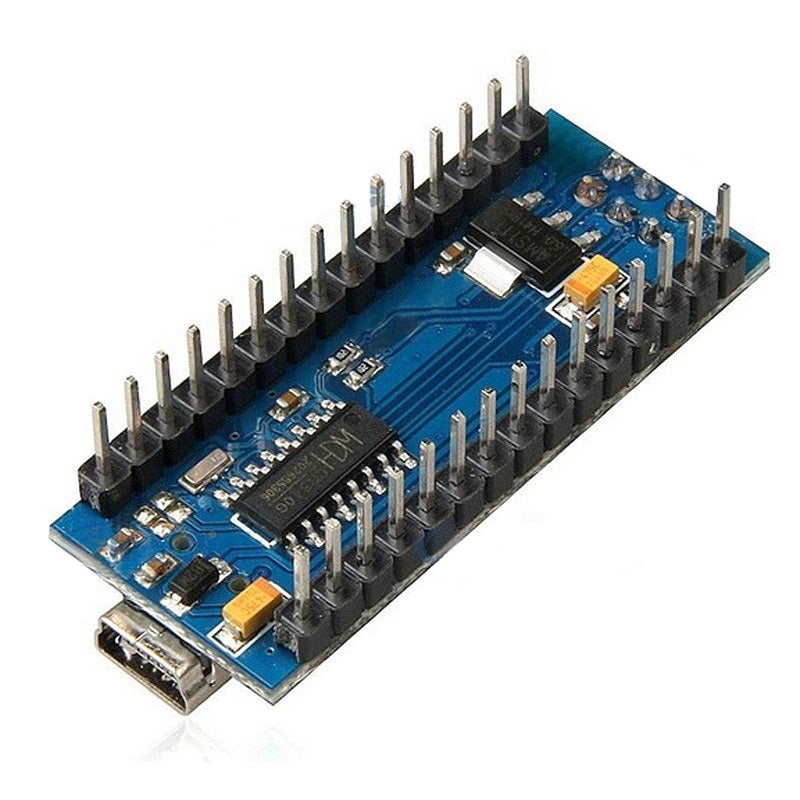

Mini USB Nano 5V 16M ATmega328P CH340G Micro-controller board Arduino Soldered

Features:

• CH340G USB bus converter chip replaces FT232RL
• Operating Voltage (logic level): 5V
• 8 analog inputs ports: A0 - A7
• 14 Digital input / output ports: TX, RX, D2 - D13
• 6 PWM ports: D3, D5, D6, D9, D10, D11
• 1 pairs of TTL level serial transceiver ports: RX / TX
• Uses Atmel Atmega328P-AU MCU with bootloader installed
• Support USB download and Power over Mini-B Mini USB connector
• Recommended input voltage: 7V - 12V DC on pin 30 or 5V on pin 27
• Maximum input voltage limits: 6V - 20V
• Supports ISP download
• Supplied with connector pins (headers), not soldered to the board for user flexibility

Package Includes:

• 1 x Mini USB Nano V3.0 5V 16M ATmega328P CH340G Micro-controller board Arduino Soldered
