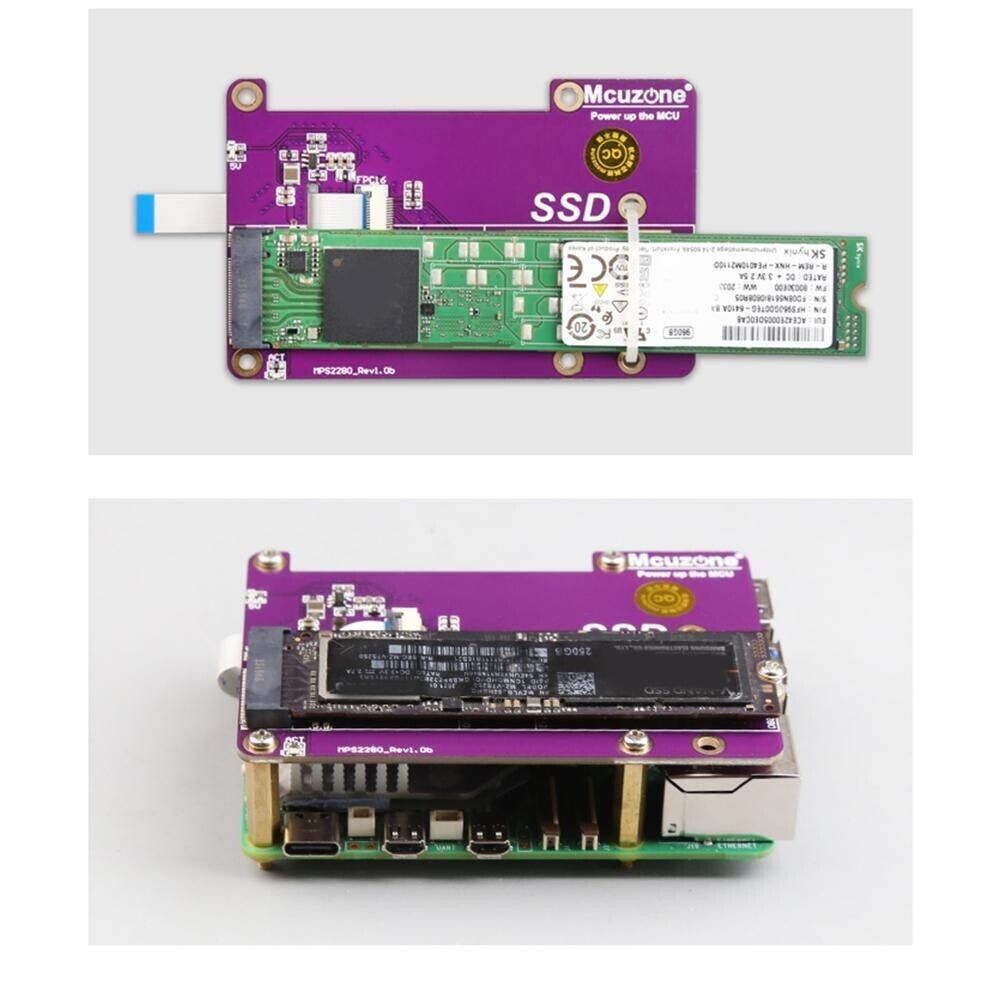

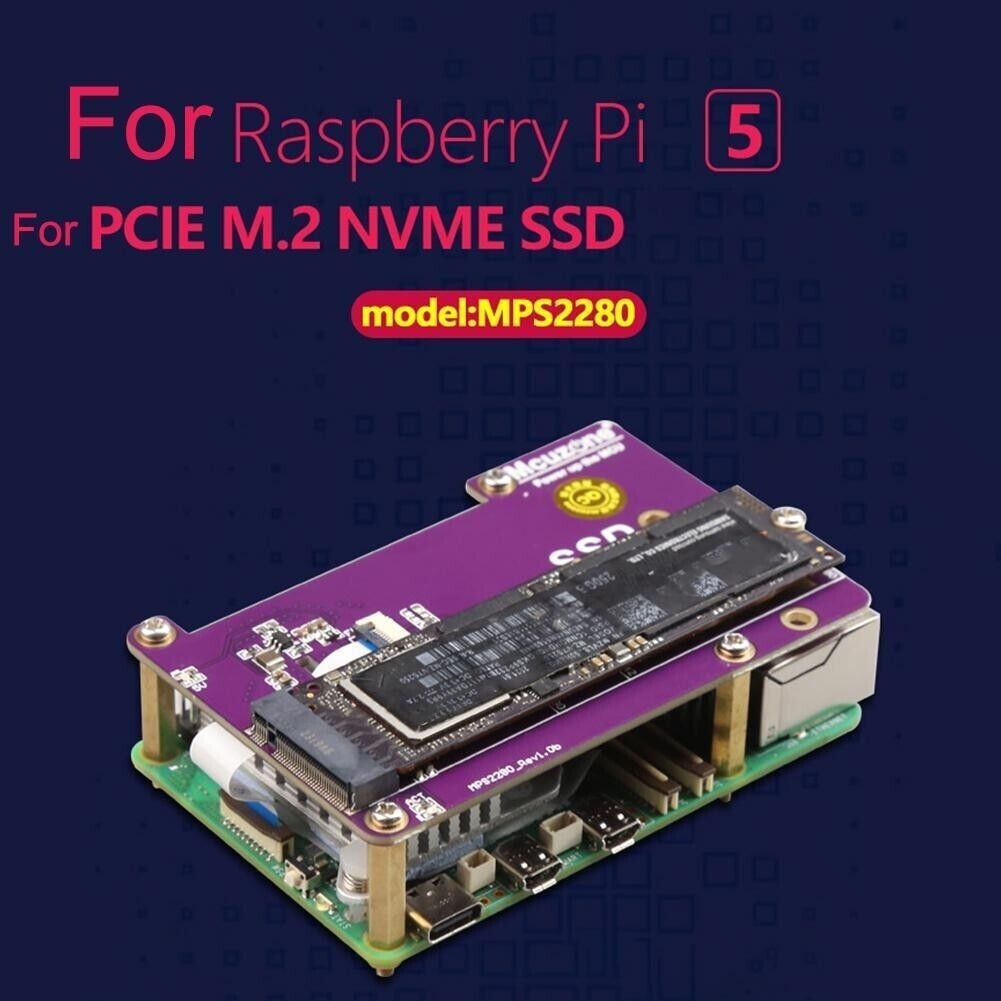

MPS2280 PCIE M.2 NVME 2280 Gen3 SSD HAT for Raspberry Pi 5

Features:

• PCle interface
• For Raspberry Pi 5, it only supports PCle x1 and Gen2 and Gen3 modes.
• M. 2 M-key interfaces, supporting NVMe solid-state drives
• Supports SSDs of size 2280/2242/2230 (default only welding 2280 copper columns)
• SSD boot system
• Support booting the system from NVME SSD hard drive and storage expansion. SSD can also be used only for storage expansion and the system can be booted from TF
• M. 2 Power supply system
• The power circuit of the expansion board adopts a 2A current design, which is limited by the current limit of the Raspberry Pi 5's PCIE interface (5V1A) and can provide an output capacity of 3.3V or above 1.5A to the solid-state drive.
• The rated current indicated on a typical solid-state drive may be 2. 7A or even 3A, but this current corresponds to the limit value of X4 mode, while the Raspberry Pi 5 only supports X1 mode, so the actual current used is much smaller than the rated current. Our design meets most hard drive requirements. (In addition, our company has an auxiliary power supply version that can provide up to 3A or 5A power to the hard drive).
• Dual LED indicator lights
• On board power indicator light ("PWR") and M.2 hard drive operation indicator light ("ACT")
• High quality components
• Using high-quality electronic components and sinking gold technology, four M2.5 fixing holes are produced without lead, and the concave design above the board facilitates the operation and use of 40Pin GPIO

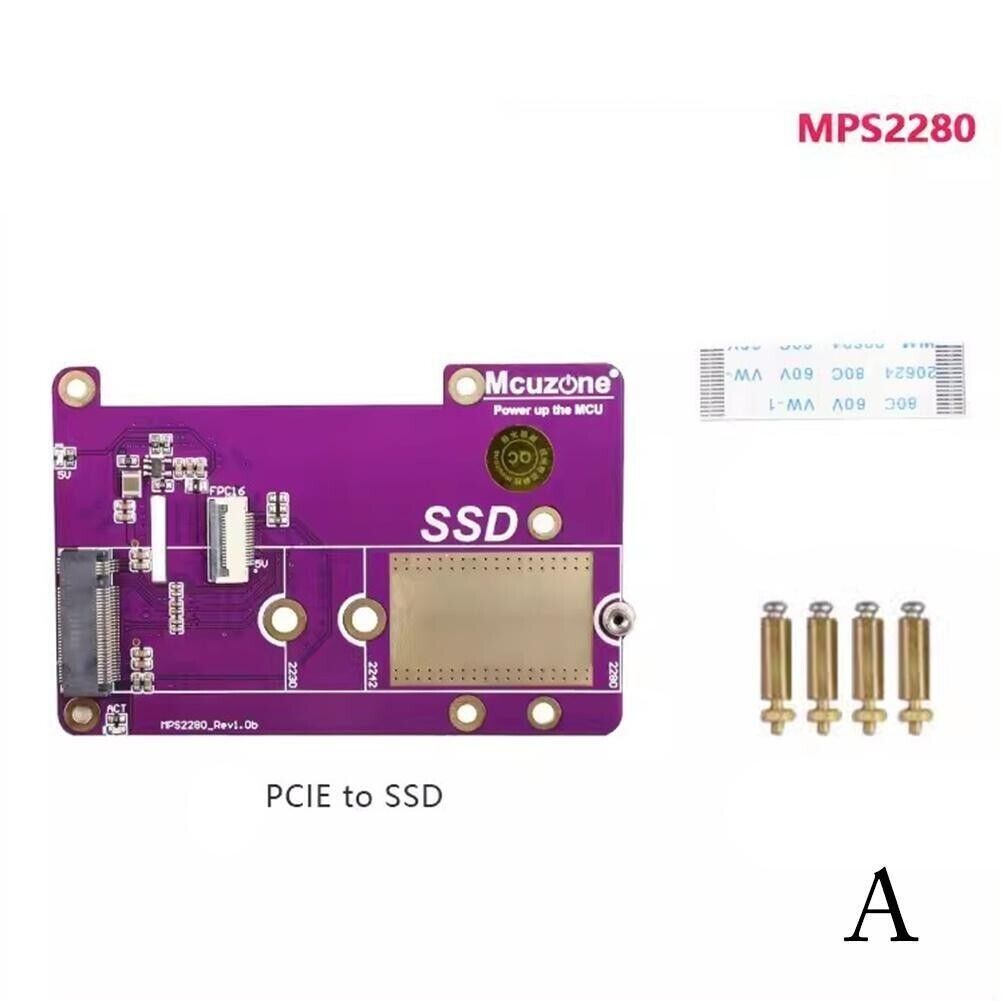

Package Includes:
