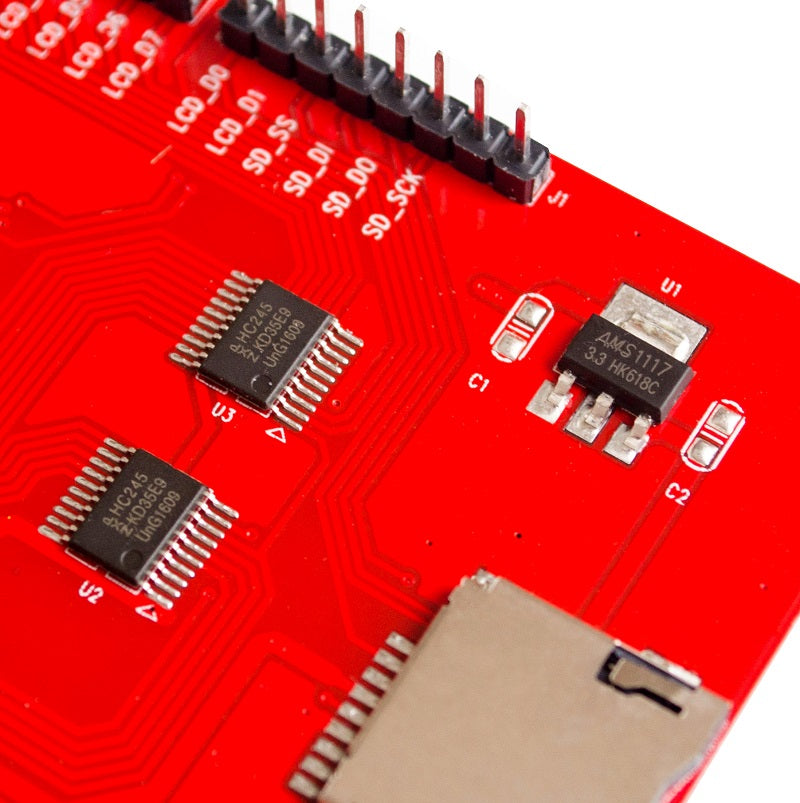

New 2.4 Inch TFT LCD Shield Touch Board Display Module For Arduino UNO

Features:

• 2.4 inch LCD TFT display
• Bright, 4 white-LED backlight, on by default but you can connect the transistor to a digital pin for backlight control
• Colorful, 18-bit 262,000 different shades
• 4-wire resistive touchscreen
• 240 x 320 resolution
• Spfd5408 controller with built in video RAM buffer
• 8 bit digital interface, plus 4 control lines
• Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
• 5V compatible, use with 3.3V or 5V logic
• Size: 71 x 52 x 7mm

Package Includes:

• 1 x New 2.4 Inch TFT LCD Shield Touch Board Display Module For Arduino UNO
