Raspberry Pi Audio HAT MAX98357 I2S With 2 Speakers

Raspberry Pi Audio HAT MAX98357 I2S With 2 Speakers

Regular price $18.99 USD
Regular price Sale price $18.99 USD
Sale Sold out
Shipping calculated at checkout.

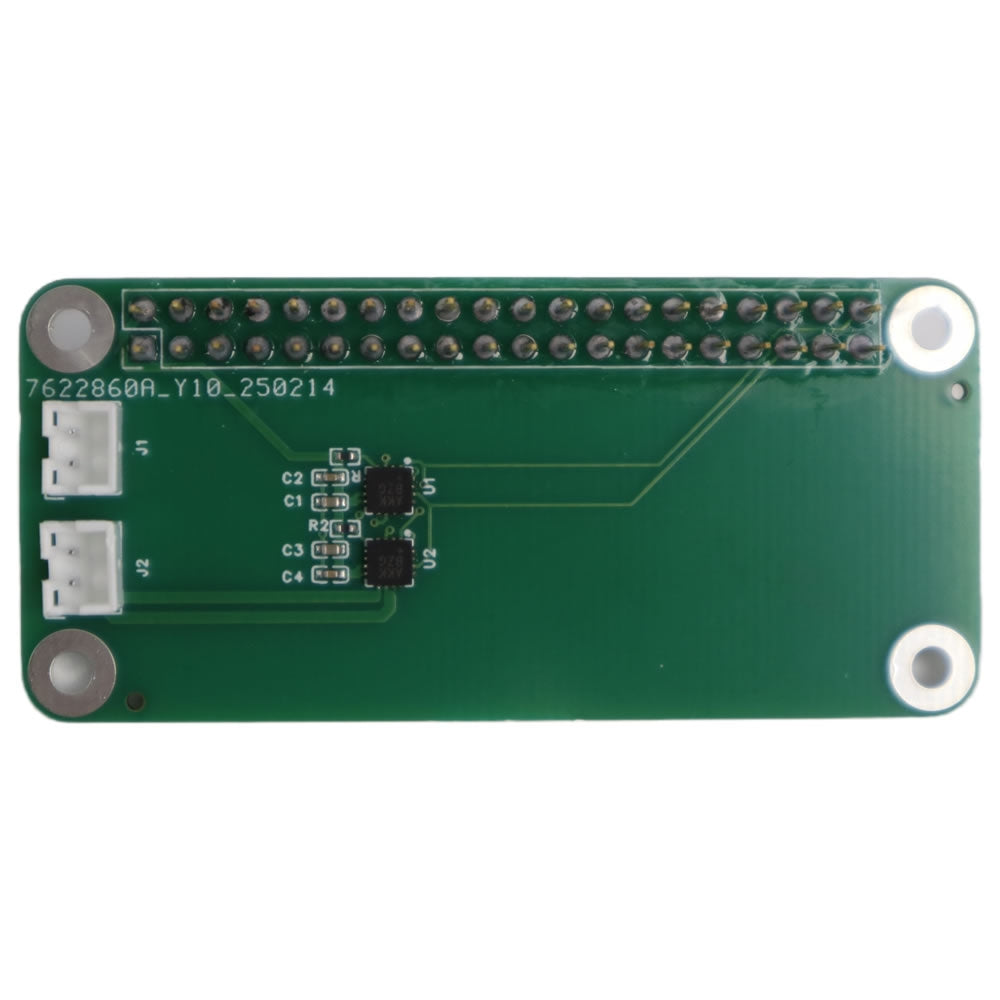

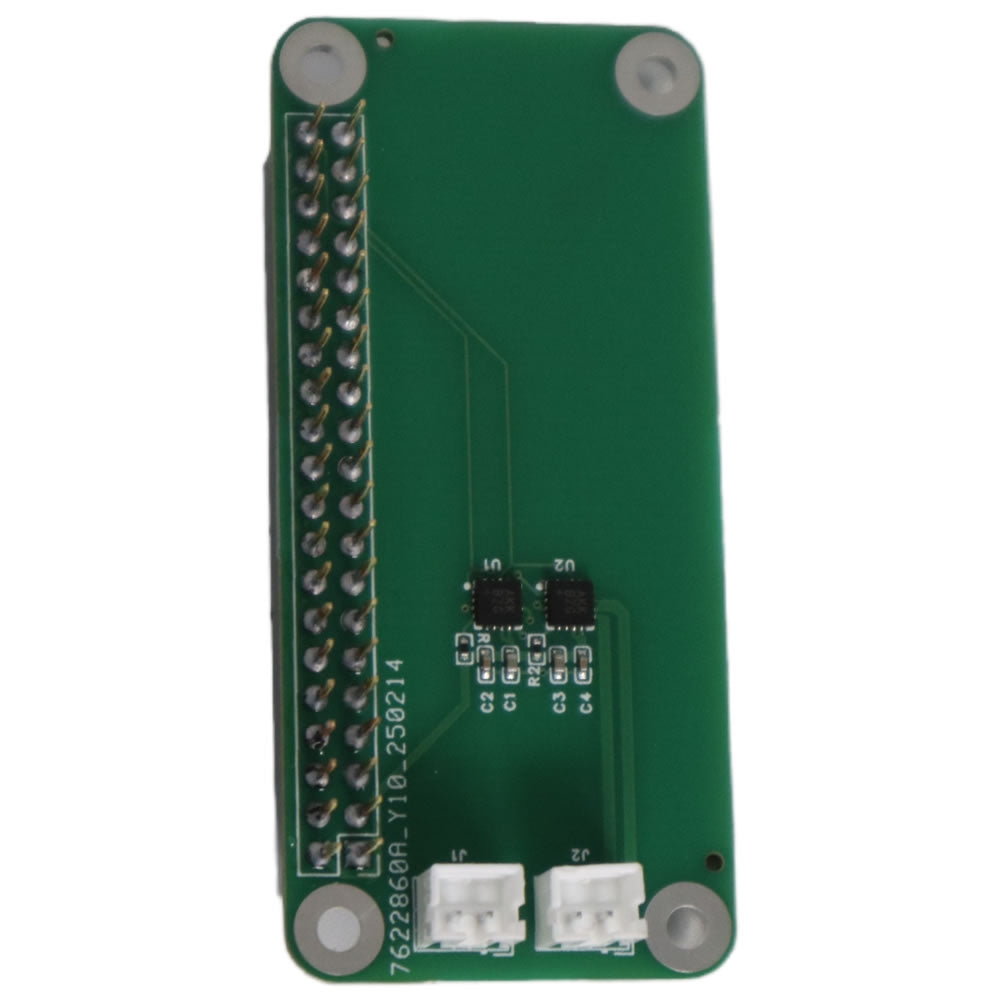

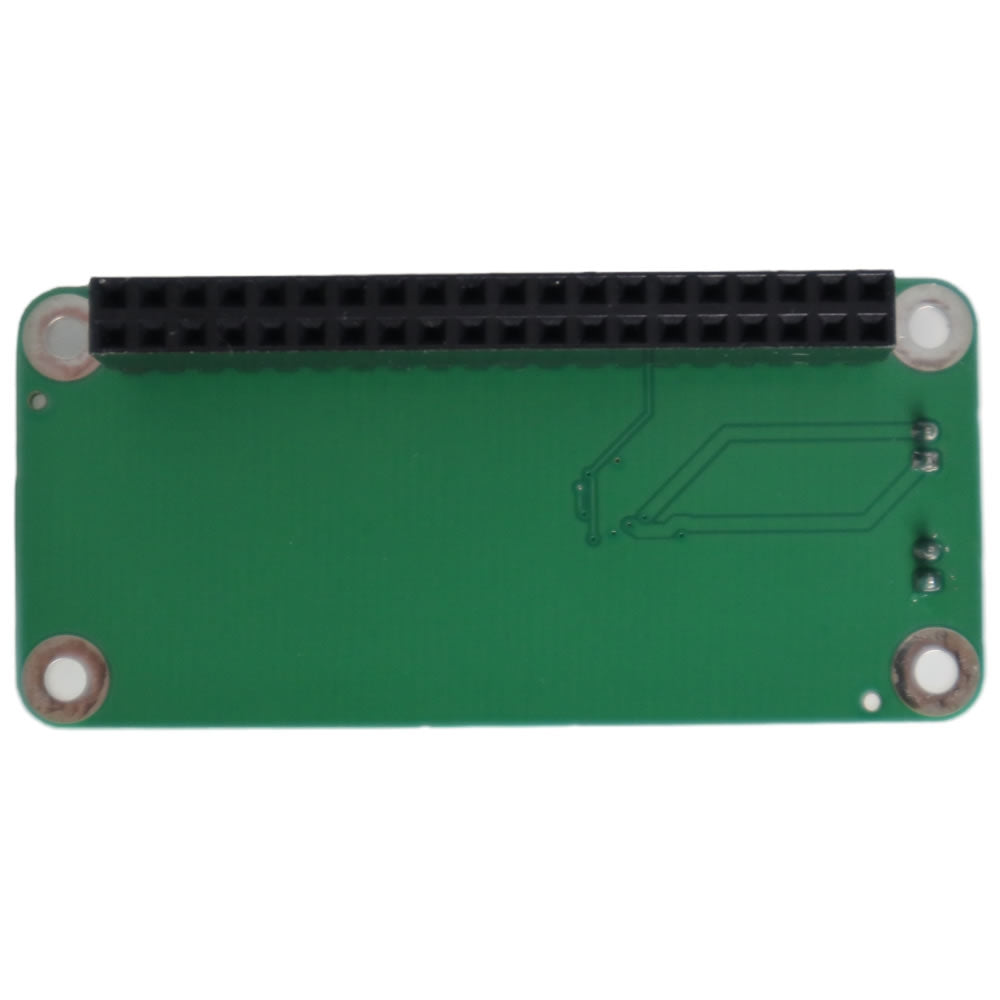

This product is an audio decoder board designed specifically for the Raspberry Pi. It utilizes low-power, stereo codec chips, supports high-quality audio playback, and can directly drive speakers to play music.

Features:

  • 40-Pin GPIO Connectivity: Designed for direct integration with Raspberry Pi series boards.
  • Dual MAX98357 Codec Implementation: Achieves stereo audio output via I2S digital audio interface.
  • Integrated Speaker Output: Provides dual-channel speaker terminals for direct speaker connection.
  • Driverless Operation: Enables immediate functionality with a plug-and-play hardware design.

Specifications:

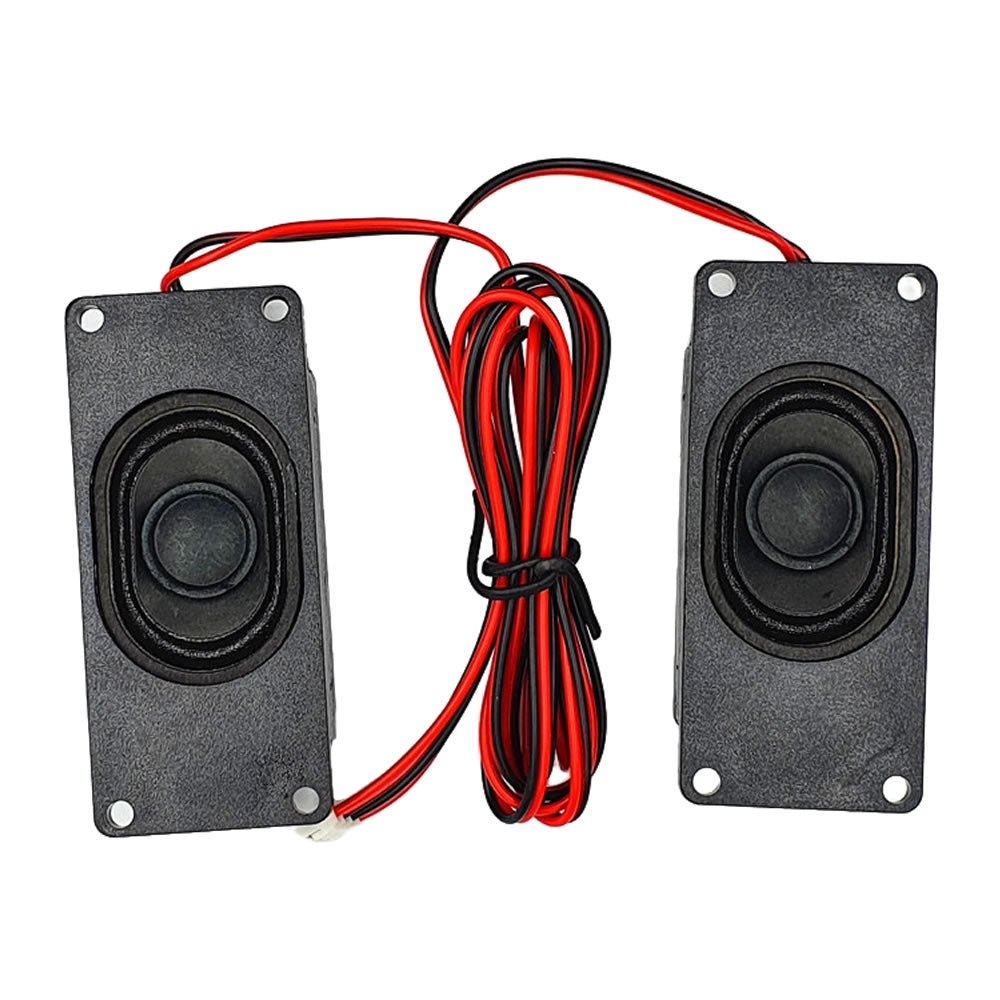

  • Speakers: 4 ohms, 3W, 2 units
  • Speaker Interface: PH2.0
  • Speaker Cable Length: 60cm

Instructions

  • 1. Editing boot.txt
    • 1. Run the following command to open the file in a text editor:
    • sudo nano /boot/config.txt
    • 2. Append the following to the end of the file:
    • dtoverlay=max98357a
  • 2. Reboot the Raspberry Pi using the following command:
  • sudo reboot

Precautions

  • Please ensure the Raspberry Pi is powered off before operation to avoid hardware damage.

Package Includes:

  • 1 x Raspberry Pi Audio HAT
  • 2 x Speakers
