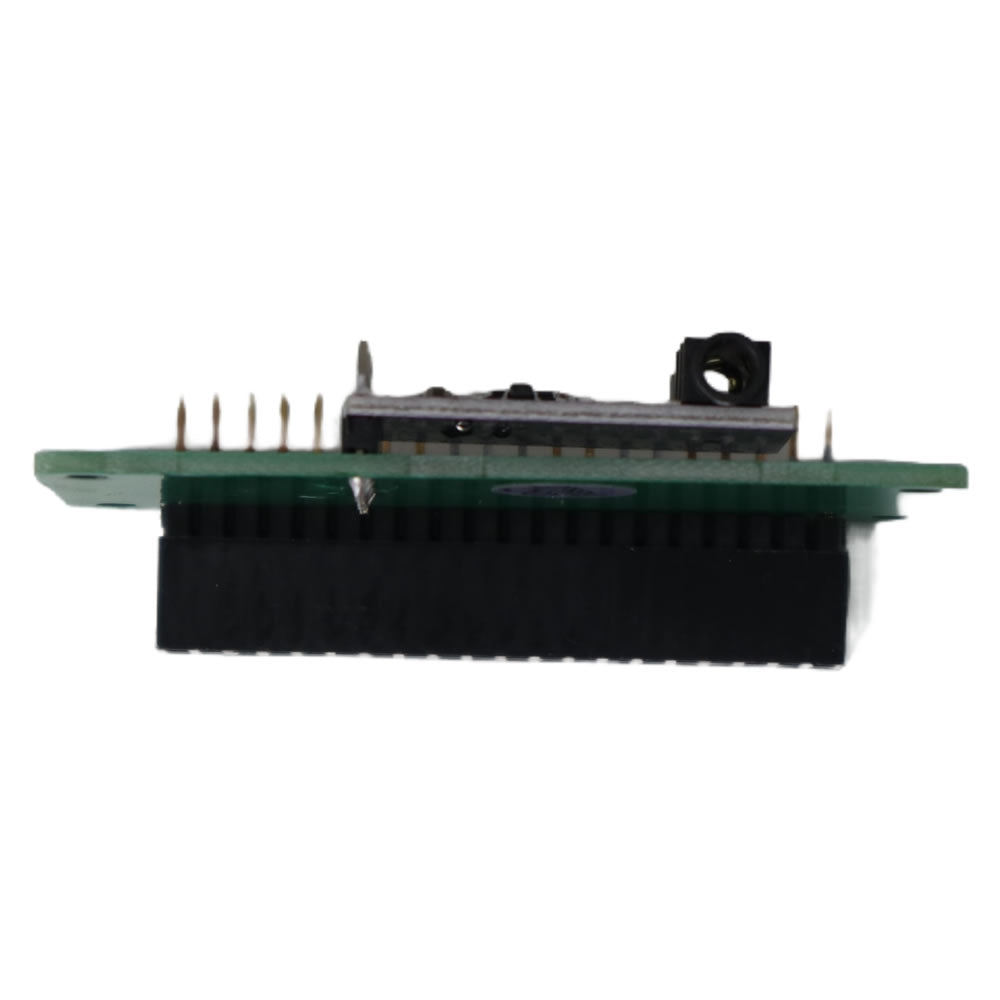

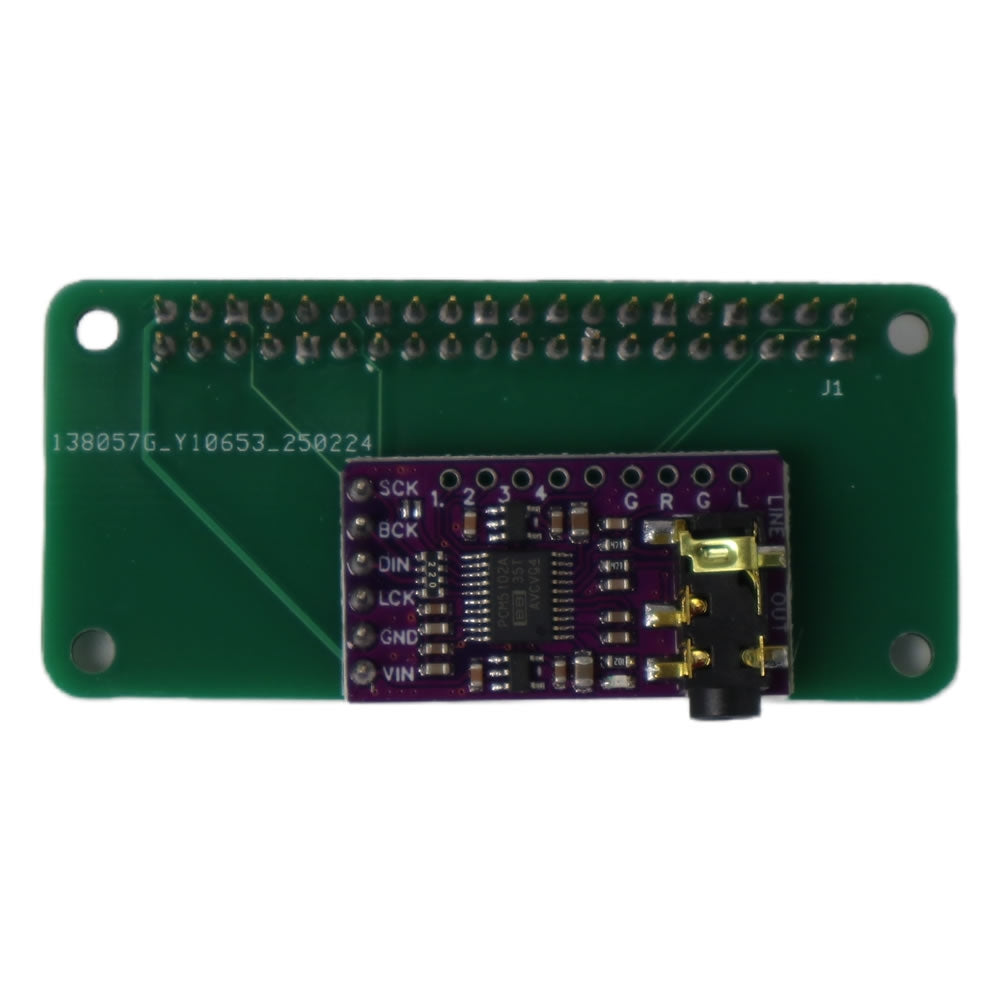

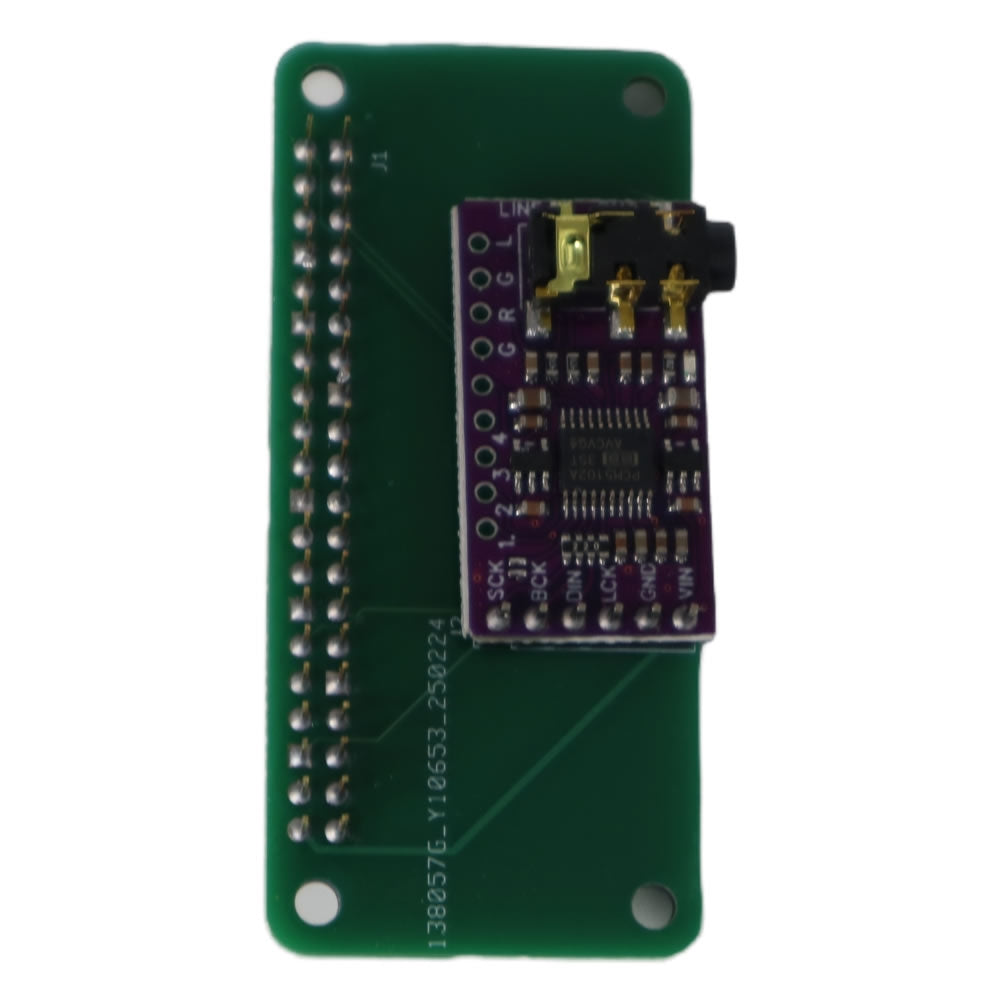

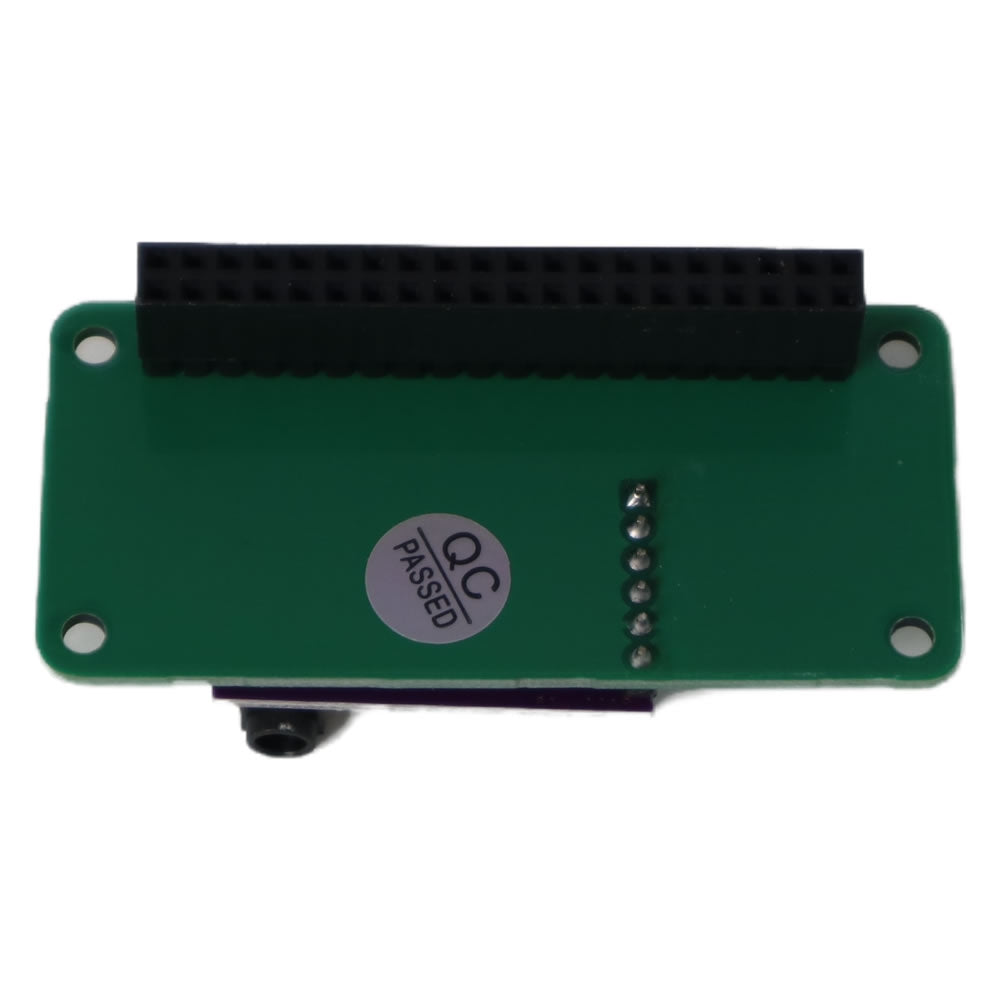

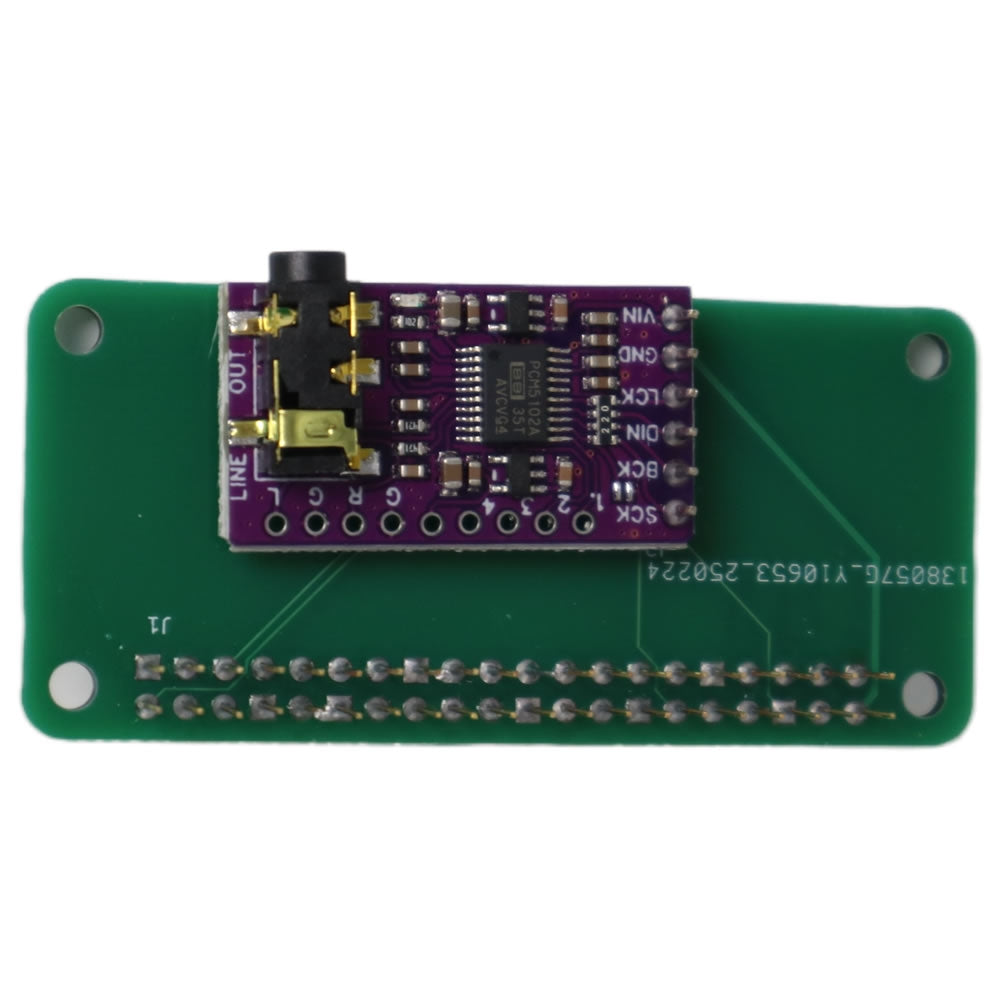

Raspberry Pi Audio HAT PCM5102A

This product is an audio decoder board designed specifically for the Raspberry Pi. It utilizes the PCM5102A stereo DAC module, communicating via the I2S interface to achieve high-quality digital audio output.

Features:

• Based on the Raspberry Pi 40-pin GPIO interface, suitable for Raspberry Pi series motherboards.
• Employs the PCM5102A stereo DAC module, communicating via the I2S interface to achieve high-quality digital audio output.
• Onboard 3.5mm stereo output jack, allowing connection to headphones, small speakers, or external amplifiers.
• Plug and play.

Supported Platforms

• Designed for Raspberry Pi, based on the Raspberry Pi 40-pin GPIO interface, suitable for Raspberry Pi series motherboards.

Instructions

• 1. Edit boot.txt
• 1) Run the following command to open the file in a text editor:
• sudo nano /boot/config.txt
• 2) Append the following to the end of the file:
• dtoverlay=hifiberry-dac
• 2. Reboot the Raspberry Pi
• 1) Run the following command to reboot the Raspberry Pi:
• sudo reboot

Precautions

• Please ensure the Raspberry Pi is powered off before operation to avoid hardware damage.
• If you encounter any problems during use, please refer to relevant materials or contact customer service.

Package Includes:

• 1 x Raspberry Pi Audio HAT PCM5102A
